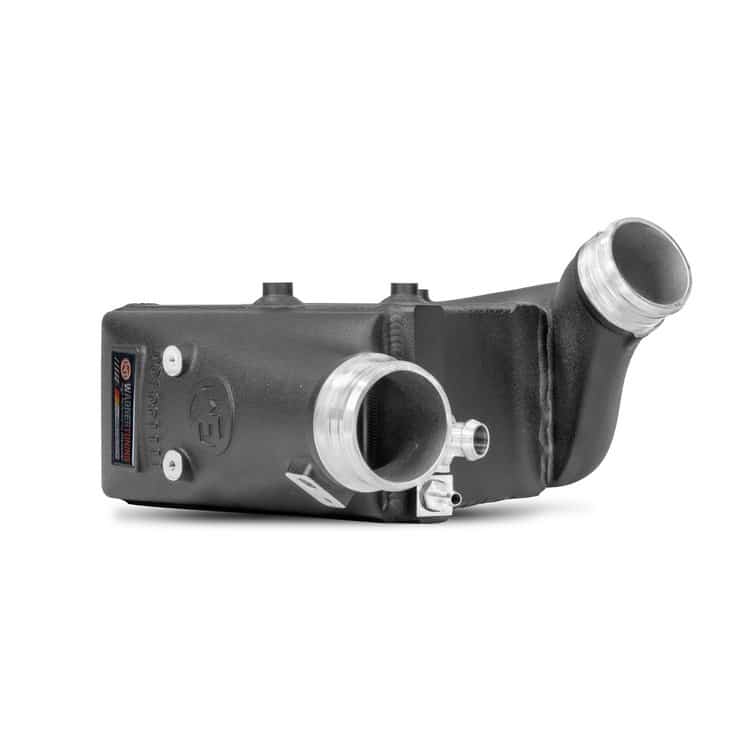

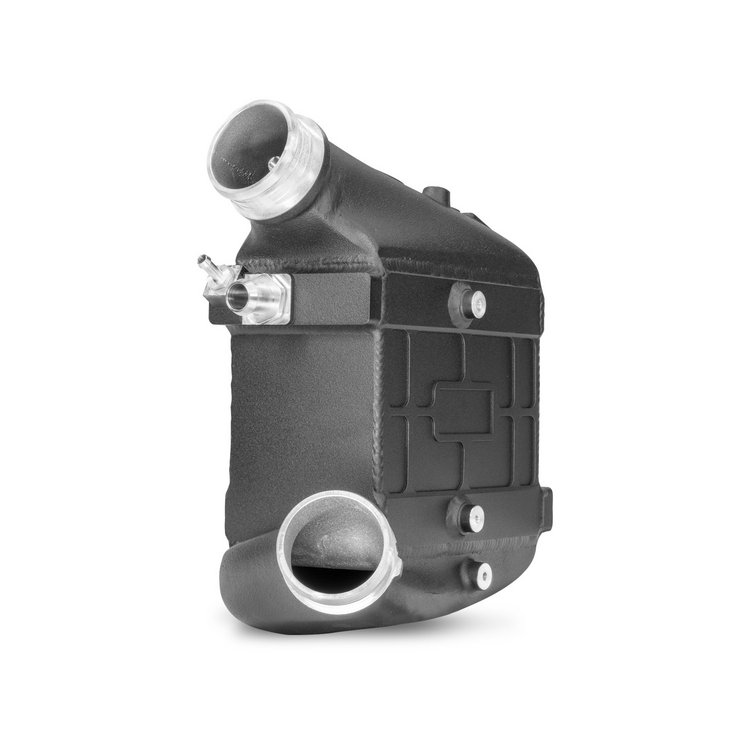

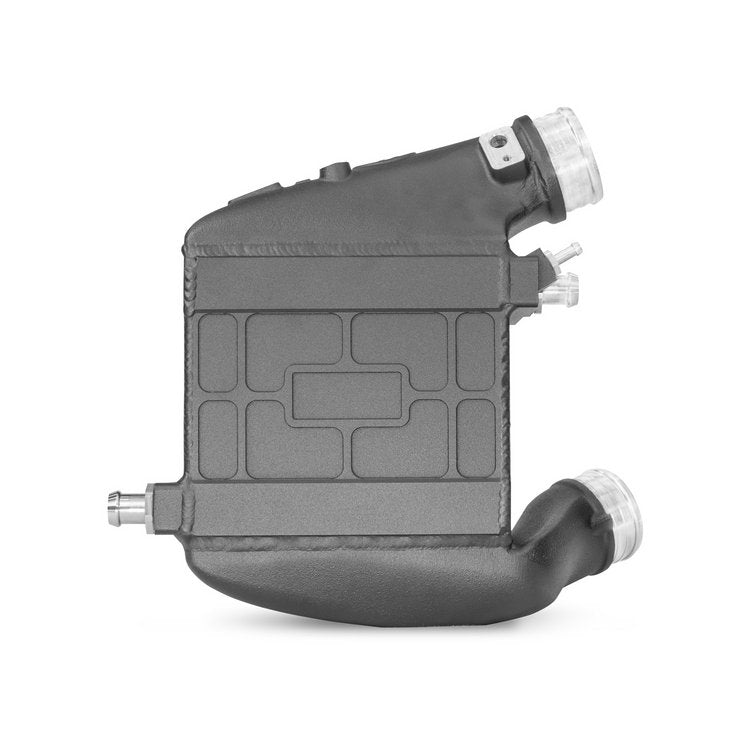

The Wagner Performance intercooler kit has been specially developed for the Audi RS4 B9 and RS5 with the 2.9-liter V6 biturbo engine (VW EA839) and replaces the standard water-cooled intercooler for better cooling and performance, both on the road and on the track.
The core measures 222 mm x 200 mm x 120 mm and delivers an increase of 185% in the volume of the outer core, for maximum heat transfer and optimal airflow. The end cabinets are made of cast aluminumDesigned with CAD technology and optimized with CFD simulations, this ensures excellent cooling with minimal back pressure. A special anti-corrosion coating ensures a long-lasting and reliable cooling process, and the intercooler provides additional mechanical relief for the turbo. Thanks to the plug & play installation with detailed instructions, assembly is simple.
Properties
- Significant improvement in cooling performance for optimal power development
- Minimal back pressure for optimized performance
- More power and torque
- Mechanical relief of the turbo for a longer lifespan
- 100% compression strength for maximum reliability
- Simple plug & play installation
- Up to 4 years warranty
Technical specifications
- Vehicle: Audi RS4 B9 / RS5 2.9 TFSI (VW EA839)
- Core dimensions: 222 mm x 200 mm x 120 mm
- Increase in core volume: 185% (outer nucleus)
- End boxes: cast aluminium (CAD design, CFD-optimized)
- Coating: anti-corrosion coating

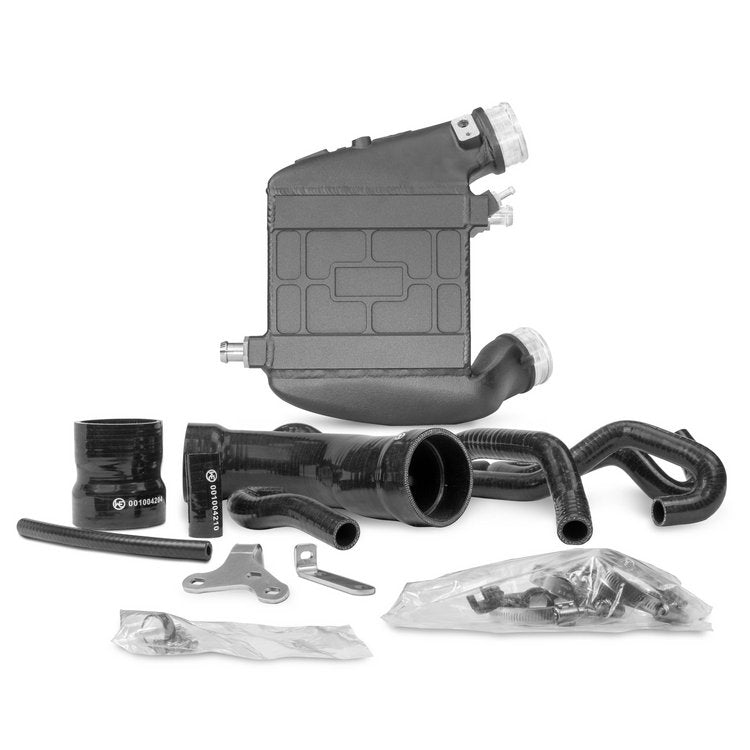

Contents of the set
- Wagner Performance intercooler
- 2 silicone air tubes
- 6 silicone water tubes
- Mounting material
- Installation instructions
Frequently Asked Questions
For which models is this intercooler suitable?
The kit fits the Audi RS4 B9 and RS5 with the 2.9-liter V6 biturbo engine (VW EA839).
Does this replace the original intercooler?
Yes, the kit replaces the standard water-cooled intercooler.
Is there a warranty?
This intercooler comes with a warranty of up to 4 years.
Is the installation difficult?
No, thanks to the plug & play installation and detailed instructions, assembly is simple.
