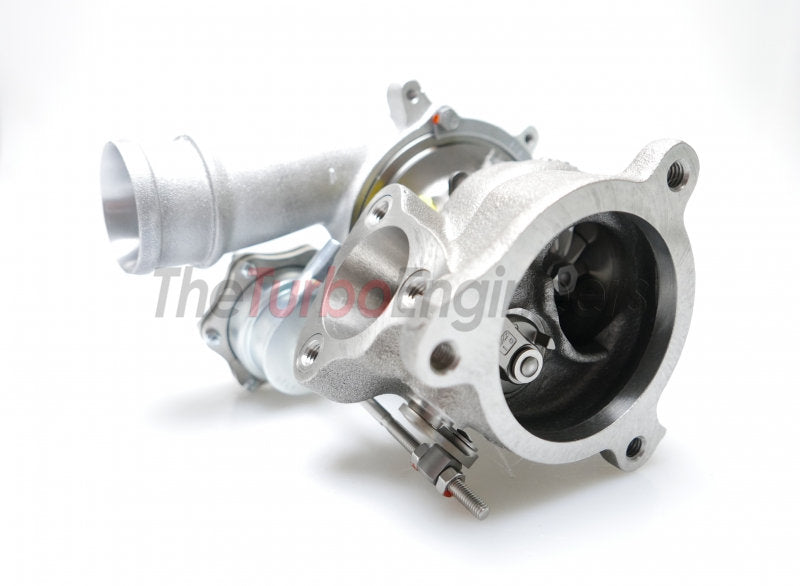

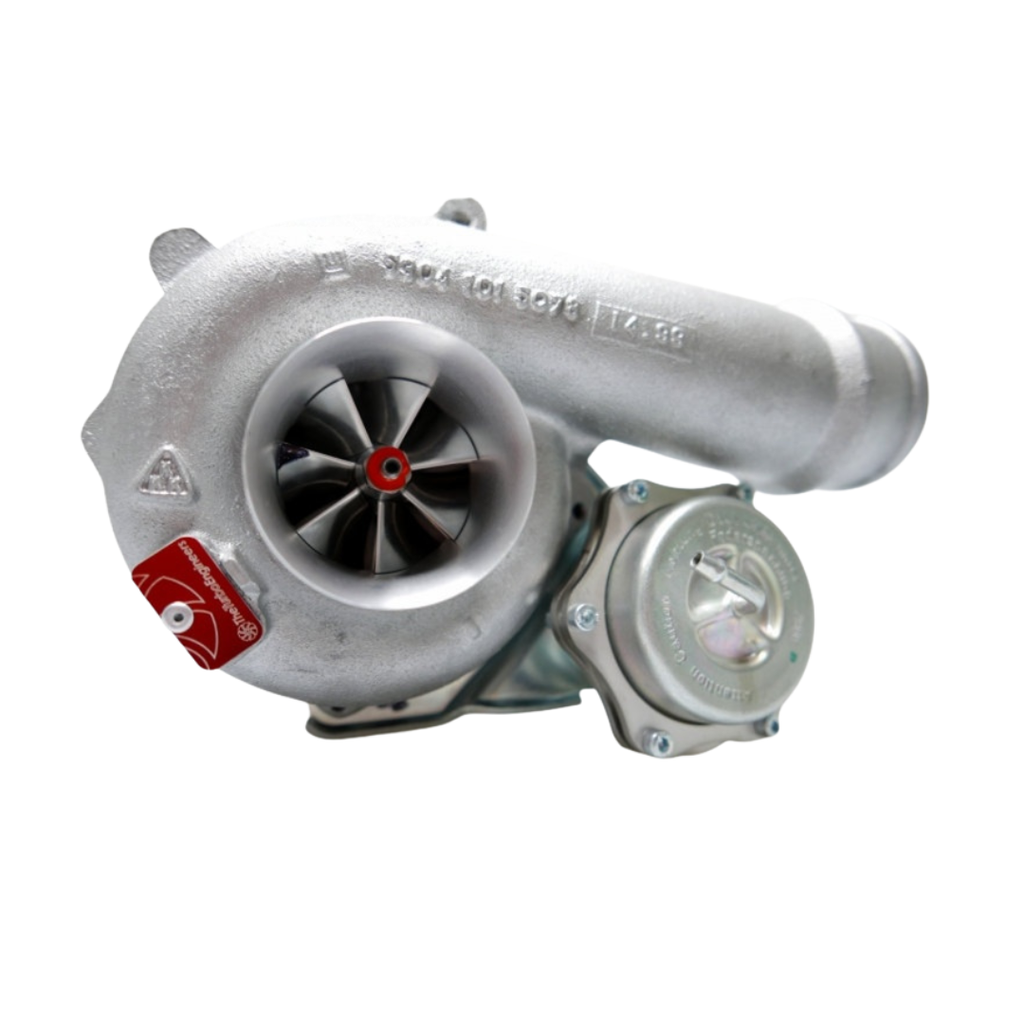

TTE360 - Upgrade Turbo - Audi S3 8L / TT 8N VAG 1.8T

Excellent 518 reviews on

TTE360 - Upgrade Turbo - Audi S3 8L / TT 8N VAG 1.8T

TTETTE10008

1.387,00

Delivery icon Shipping time: ()

Option: i'm sending my old turbo

Price:

The TTE360 is the highest power stage that TheTurboEngineers offers based on the original BorgWarner K04 turbocharger for the VAG 1.8T. This upgrade has been developed for drivers who maximum achievable power want within the K04 frame, without making concessions to response, reliability and OEM driving behaviour.
With the right hardware and software, approximately 360 hp feasible. The TTE360 is virtually plug & play, but does require a larger turbo inlet and custom ECU software.

Advantages

• Highest K04-based upgrade for the 1.8T
• Up to approximately 360 hp possible
• Very fast spool thanks to 7+7 billet compressor
• Lower back pressure and EGT due to K16 turbine
• OEM+ handling and durability
• Proven motorsport quality from TheTurboEngineers

Technical specifications

• Basic: New genuine BorgWarner K04-023 turbocharger
• Compressor: BorgWarner billet milled 7+7 blade compressor wheel
• Compressor housing: CNC re-profiled with close tolerances
• Inlet: CNC billet inlet 58 mm
• Turbine: Original BorgWarner K16 high-flow turbine, curved cut and lightened
• Turbine housing: CNC-ported and enlarged to approx. 48 mm
• Storage: TTE 360° high-performance motorsport plain bearing
• Actuator: Original BorgWarner, reinforced and adjustable
• Assets: up to approx. 360 hp
• Balancing:
– Parts balanced up to 2800 RPM
– CHRA high-speed VSR up to 250,000 RPM
• ECU: Software recalibration required

Compatibility

• Audi S3 8L 1.8T
• Audi TT 8N 1.8T
• Seat Leon Cupra R 1.8T
• Other VAG 1.8T models with K04-023 configuration

• 1x TTE360 upgrade turbocharger
• VSR balance test result with serial number

Frequently Asked Questions

Is the TTE360 completely Plug & Play?
Mechanically, almost. A larger turbo intake is required, and ECU software needs to be modified.

What is the difference with the TTE340?
The TTE360 uses a larger 7+7 compressor and a K16 turbine, which provides more top-end power and lower EGT.

Is this turbo suitable for everyday use?
Yes, provided it's properly tuned and has supporting hardware. The response remains remarkably good for this power level.

Delivery time

• New turbo: 3 - 6 working days
• I am sending my old turbo: 20 - 40 working days
