TTE280L - Upgrade Turbo – VAG 1.8T Longitudinal

Excellent 518 reviews on

TTE280L - Upgrade Turbo – VAG 1.8T Longitudinal

TTESW10001

976,00

Delivery icon Shipping time: ()

Option: i'm sending my old turbo

Price:

The TTE280L is a performance turbo upgrade for the VAG 1.8T longitudinal platform, developed by TheTurboEngineers. This hybrid upgrade is based on a original BorgWarner K03 and optimized for higher flow, lower back pressure and fast response. With the right hardware and tuning, up to 300 hp feasible, while maintaining OEM-like drivability. The turbo is plug & play to be mounted in combination with a larger turbo inlet and required software recalibration.

Advantages

• Until 300 hp possible with correct setup
• BorgWarner 2283 billet compressor with Extended Tip Technology for high efficiency
• 9-bladed high-flow turbine for lower EGT and back pressure
• 58mm billet oversized intake for improved air supply
• 360° motorsport bearing package for durability under higher loads
• VSR high-speed balanced with balance sheet document
• OEM fit with improved performance

Technical specifications

• Basic: Original BorgWarner K03

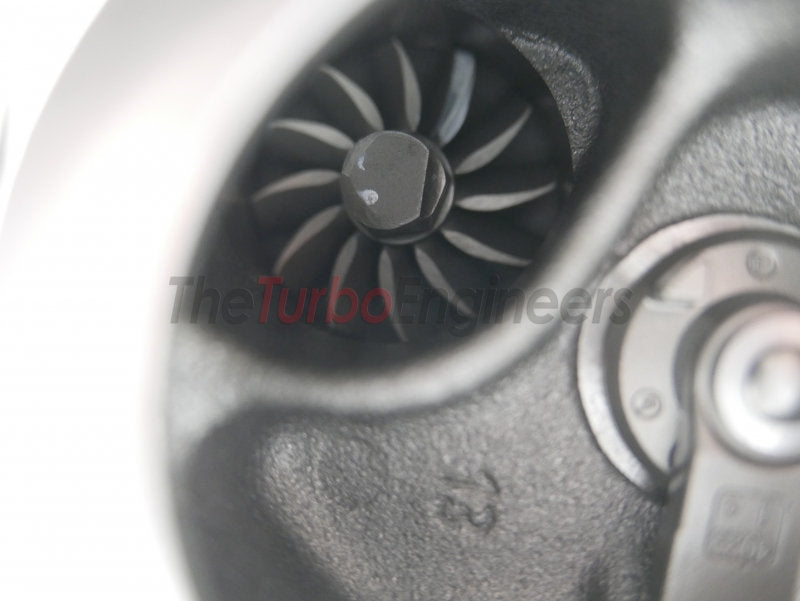

• Compressor: BorgWarner billet 6+6 blade, 46.5 mm inlet

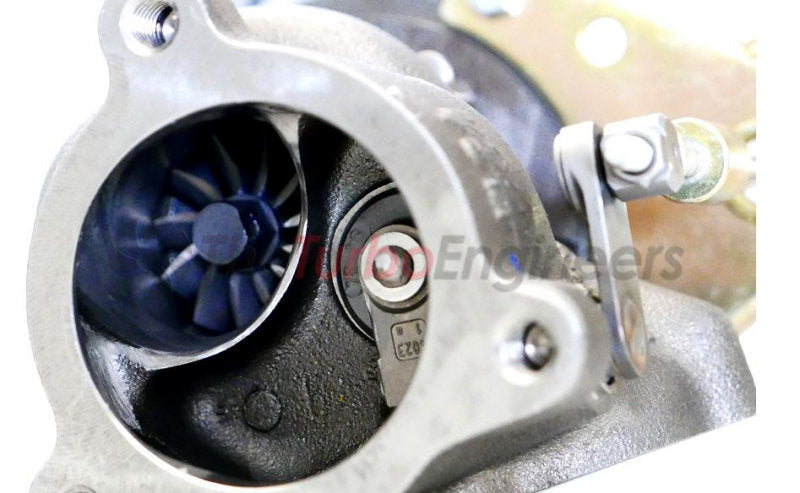

• Turbine: TTE 9-blade high-flow
• Inlet: TTE billet 58 mm oversized (Viton O-rings included)
• Storage: BorgWarner 360° reinforced upgrade bearing package
• Actuator: BorgWarner upgraded, spring loaded
• Balancing: parts + CHRA VSR up to 250,000 rpm
• Installation: Plug & play with larger turbo inlet hose
• Required: Software recalibration
• Origin: Made in Germany

Compatibility

Suitable for VAG 1.8T longitudinal engines, including:
• Audi A4 B5 / A6 C5 / A4 Allroad (1.8T)
Check the available space in advance and use a larger turbo inlet hose (e.g. 034 2.5" Turbo Inlet).

• TTE280L upgrade turbo
• Balance test result document (numbered)

Frequently Asked Questions

Is this turbo plug & play?
Yes, when used with a larger turbo inlet hoseSoftware recalibration is mandatory.

How much power is achievable?
To 300 hp, depending on hardware, fuel and tuning.

Is this suitable for transversely mounted 1.8T?
No, this model is specifically for longitudinal 1.8T applications.

Delivery time

• New turbo: 3 - 6 working days
• I am sending my old turbo: 20 - 40 working days
