The Mishimoto Compact Baffled Oil Catch Can is designed to separate oil and fuel vapors from the PCV/CCV system before they reenter the air intake. This keeps the intake, intercooler, and engine cleaner and reduces the risk of detonation.
Thanks to the internal air duct and 50-micron bronze filter, oil particles are effectively separated and captured in the collection tank. The compact housing is made entirely of billet 6061 aluminum and is fully dismountable and cleanable for extended use.
Advantages
• Separates oil and fuel vapors from PCV/CCV air
• Protects intake, intercooler and engine components
• 50 micron bronze filter for effective oil separation
• Internal baffle prevents oil splashes during sporty driving
• Compact design with universal mounting
Technical specifications
• Type: compact baffled oil catch can
• Number of connections: 2-port (inlet / outlet)
• Material: billet 6061 aluminum
• Filter: 50 micron bronze filter
• Connections: 3/8" NPT
• Suitable for: PCV and CCV systems
• Color: black
Product features
• Internal air distributor increases turbulence for better oil separation
• Keeps oil blow-by out of the intake tract
• Completely dismountable and cleanable
• Suitable for pressure applications
• Universal mounting bracket for flexible installation

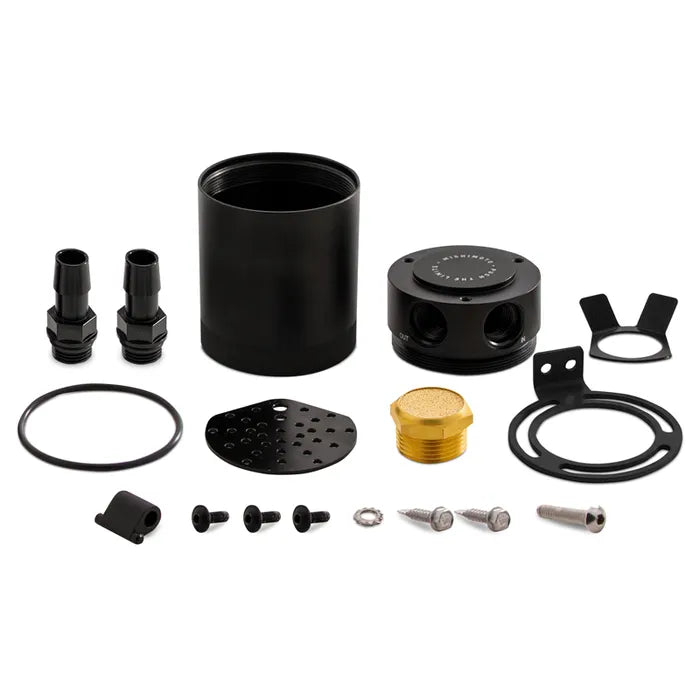

Package contents
• Mishimoto Compact 2-Port Baffled Oil Catch Can
• 2x aluminum 1/2" barbed fittings
• Universal mounting bracket
• 2x self-tapping screws
Frequently Asked Questions
What does an oil catch can do?
A catch can collects oil and fuel vapors from the crankcase ventilation system to prevent them from re-entering the engine or intake.
Why is a catch can useful?
It prevents fouling of the intake tract and can help reduce detonation by keeping the octane rating more stable.
Is this product universal?
Yes, thanks to the universal mounting bracket and connections, this catch can can be mounted on many different vehicles.
