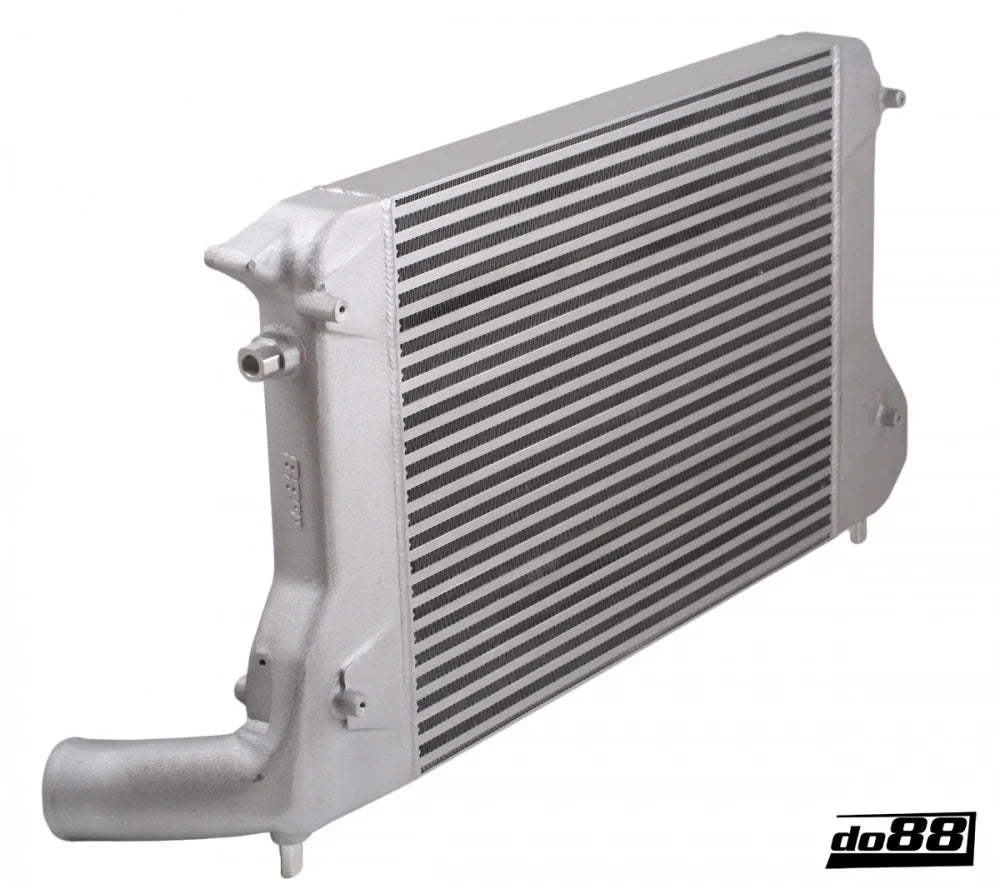

The do88 Intercooler for various Audi, Seat, Skoda and VW 2.0T FSI models have been developed as a replacement for the original intercooler without the need for extensive modifications to the vehicle. These aluminum intercooler features CAD-designed, flow-optimized cast end tanks and an optimized core design for an optimal balance between cooling performance and pressure drop.
The intercooler is suitable for a wide range of vehicles with 2.0 TFSI and 2.0 TSI engines, including the Audi A3, S3 and TT, Seat Leon, Skoda Octavia, and VW Golf models, among others. The all-aluminum construction contributes to reliability at higher turbo pressures.
Properties
-
do88 Intercooler to replace the original intercooler
- All-aluminum construction

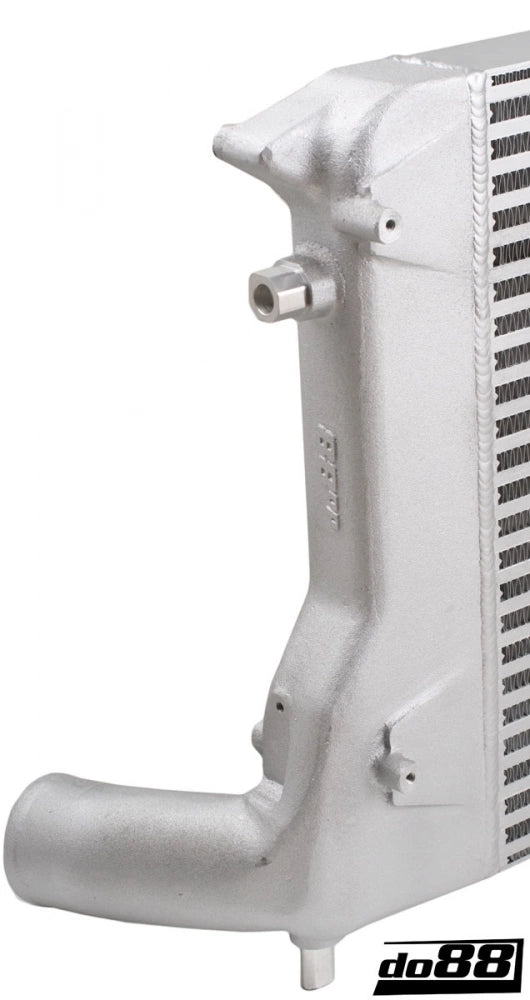

- CAD-designed, flow-optimized cast end tanks
- Optimized core design
- 74% larger core volume than OEM
- 34% higher airflow than OEM at the same pressure drop
- 8°C lower air intake temperature after the intercooler under the same conditions
- Increased reliability compared to OEM plastic end tanks
- Includes all necessary mounting materials
- Developed for mounting on all specified vehicles according to installation instructions
Technical specifications
- Material: aluminium
- Core volume do88: 13342 cm³
- OEM core volume: 7676 cm³
- Increase in core volume: 74%

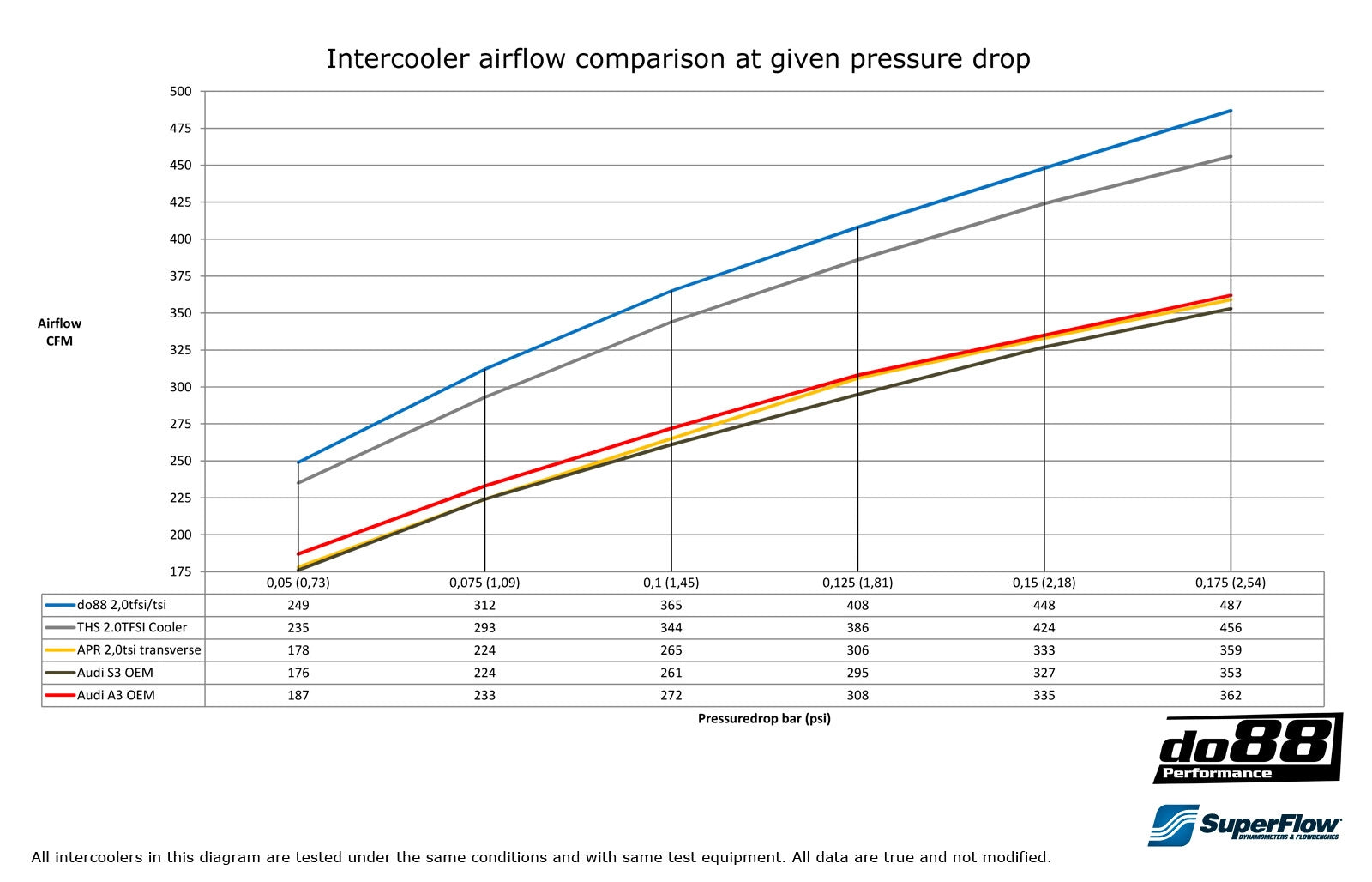

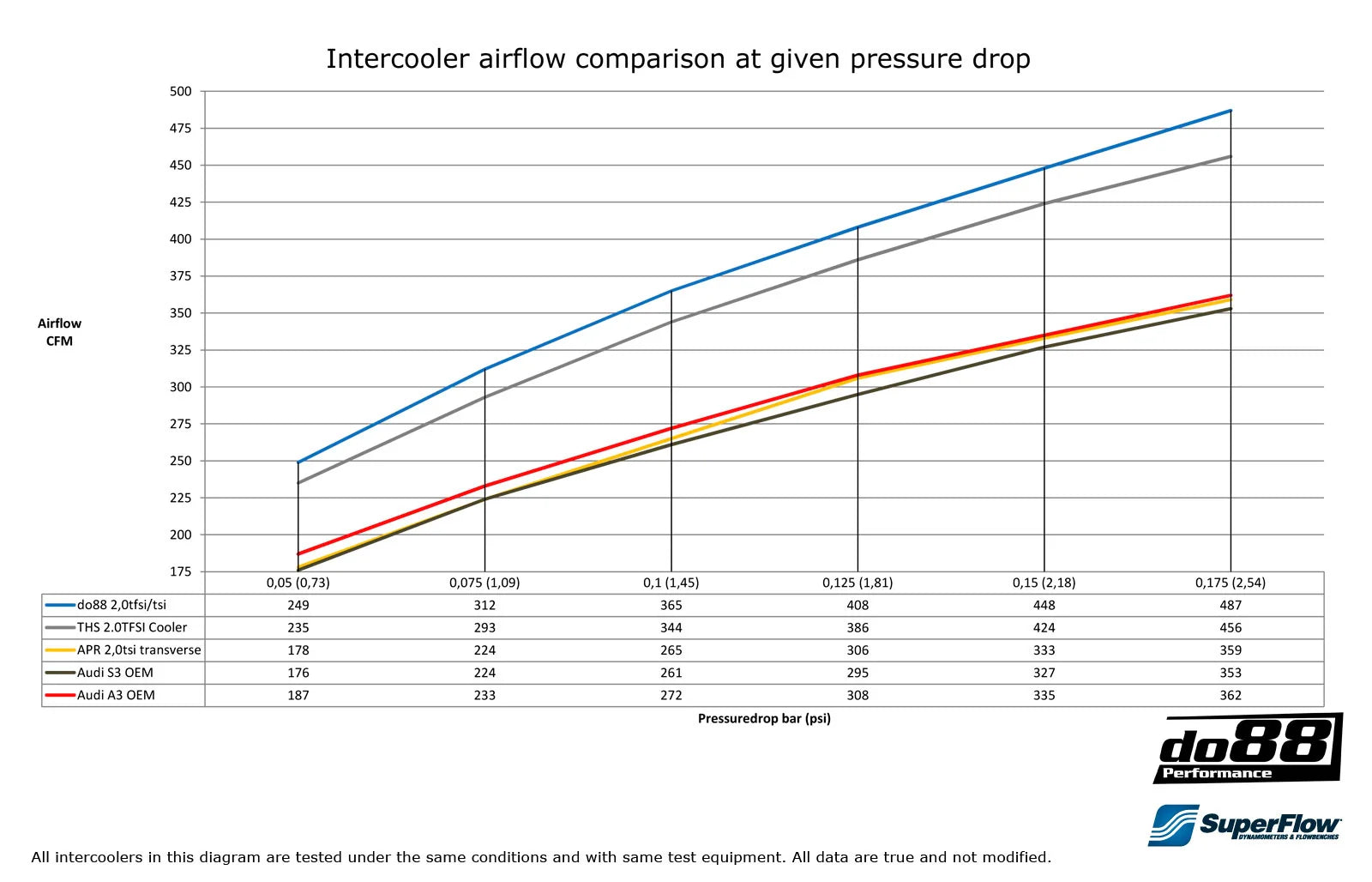

- Airflow at 0.15 bar / 2.18 psi pressure drop: 448 CFM
- Airflow OEM at 0.15 bar / 2.18 psi pressure drop: 335 CFM
- Increase in airflow: 34%

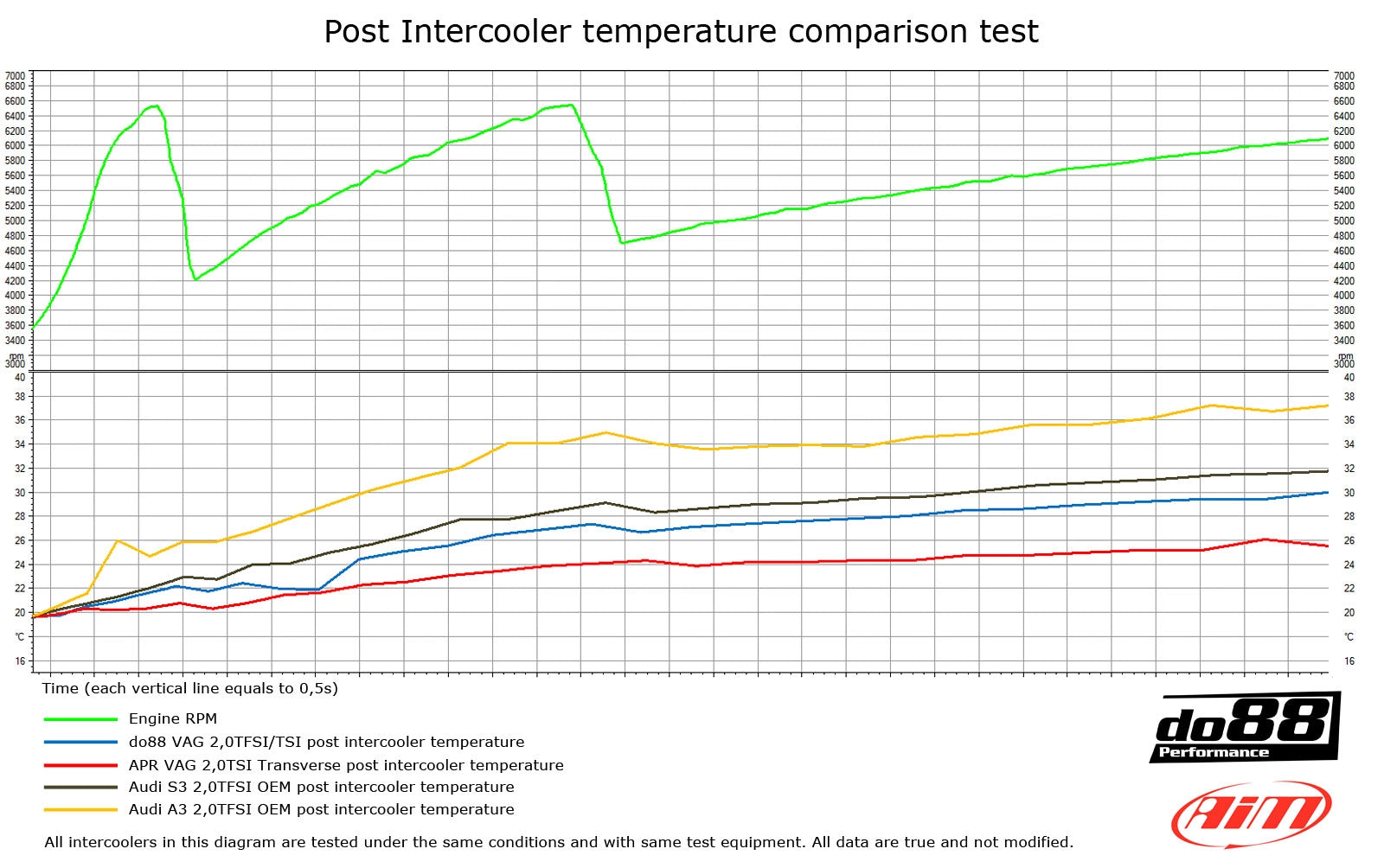

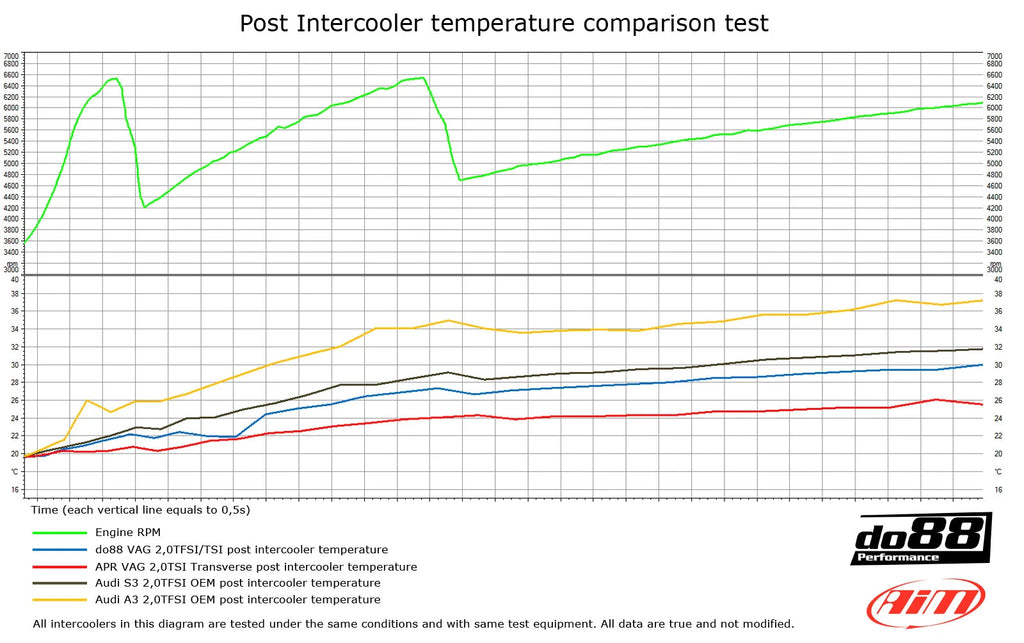

- Air temperature after intercooler: 29°C
- OEM air temperature: 37°C
- Temperature difference: 8°C lower
- CAD-designed cast end tanks

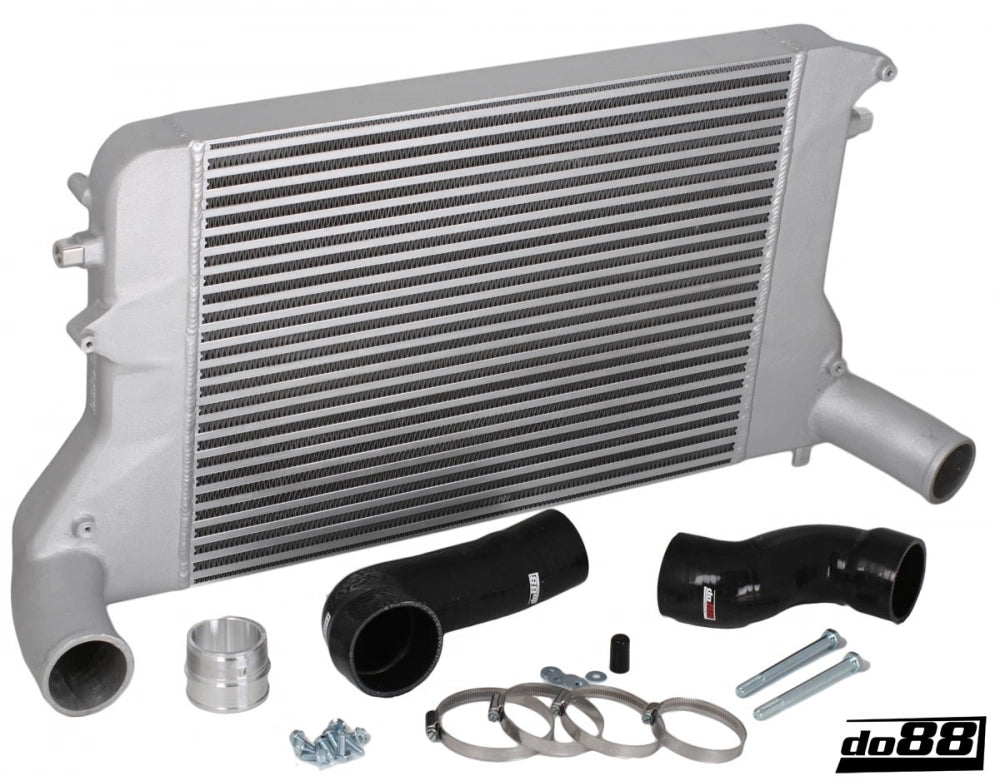

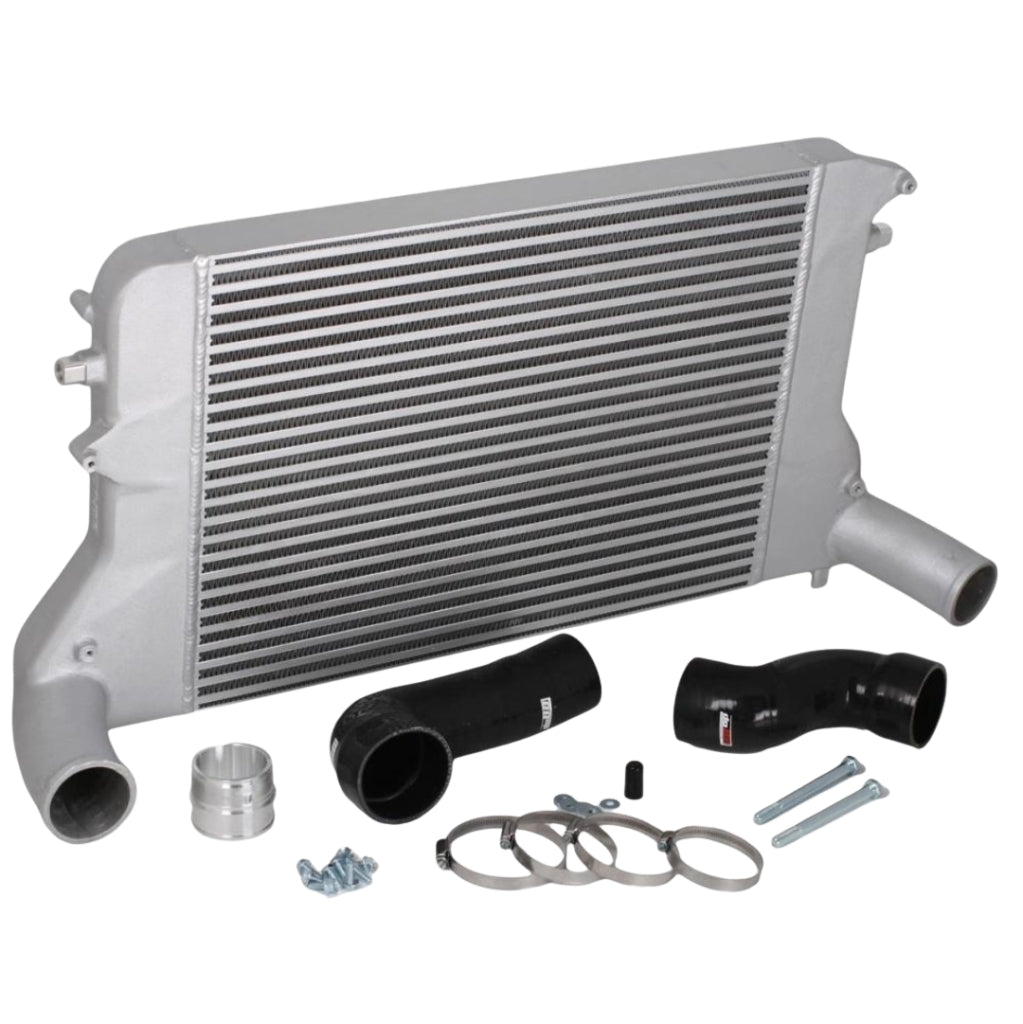

Contents of the set
- do88 Intercooler
- Required mounting materials for installation
Frequently Asked Questions
Is this intercooler a replacement for the original intercooler?
Yes, this intercooler was developed as a replacement for the original OEM intercooler.
What material is the intercooler made of?
The intercooler has a full aluminum construction with cast end tanks.
Are mounting materials included?
Yes, all necessary mounting materials for installation are included.
Are there any points to consider when mounting on specific models?

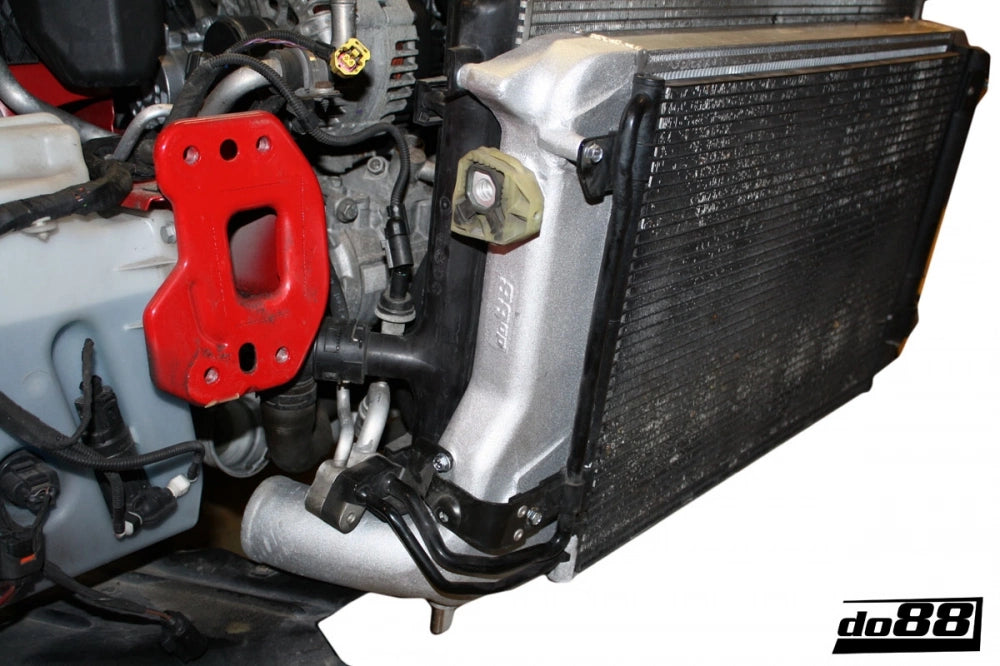

On VW Golf MK6 models, the original intake hose to the air filter housing does not fit due to the greater intercooler thickness. On VW Eos, Scirocco, and Jetta models, the intercooler exhaust hose must be extended.
