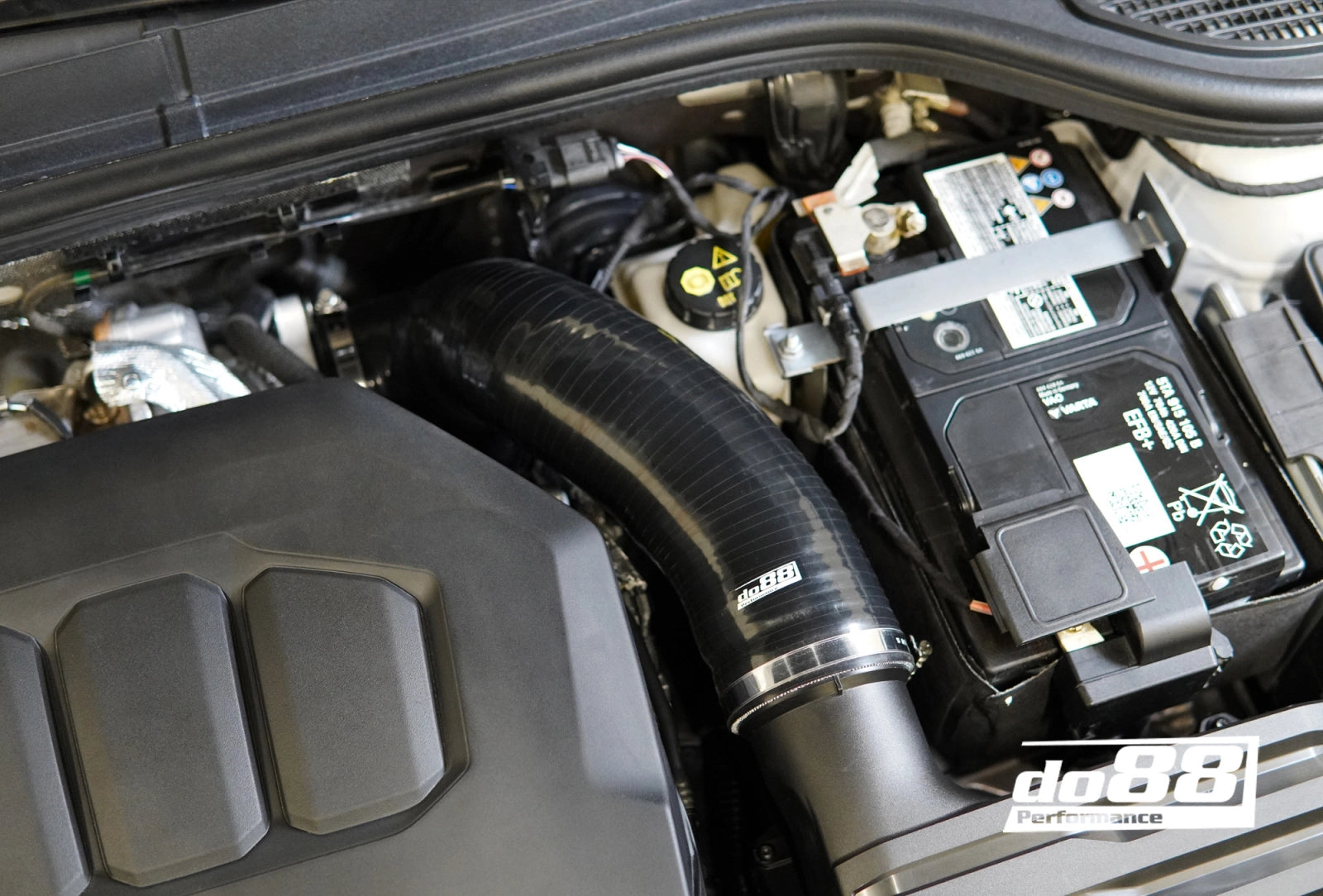

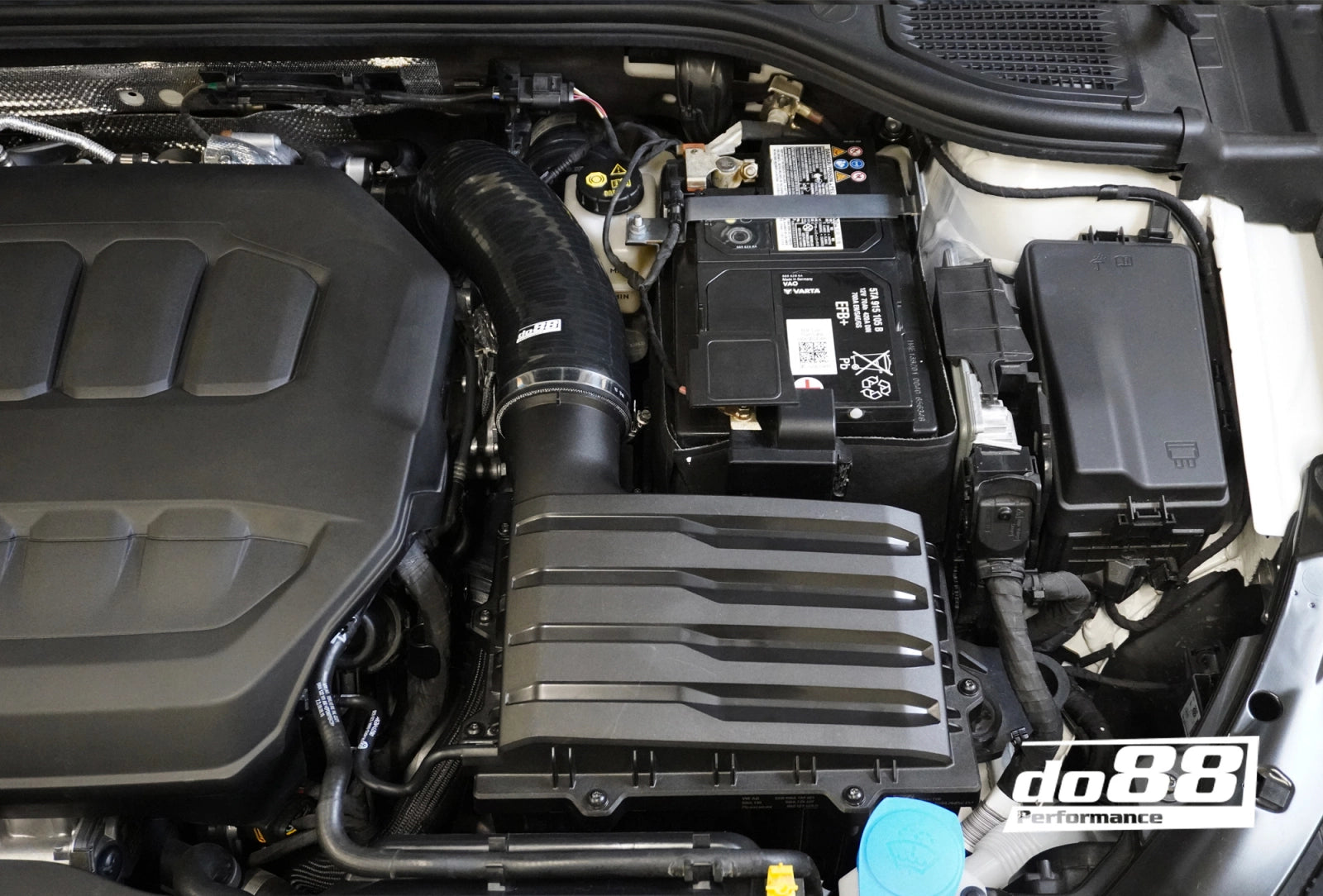

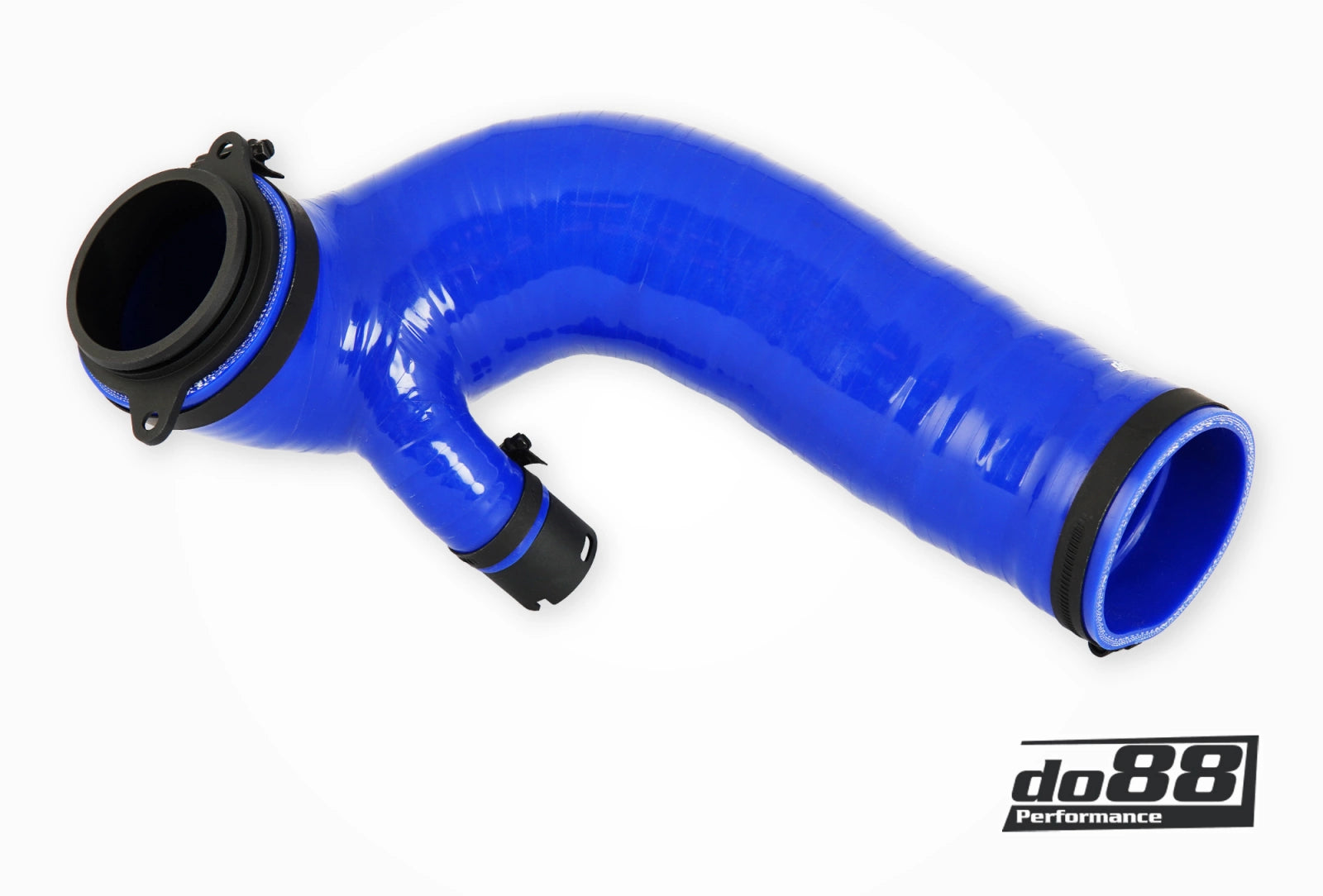

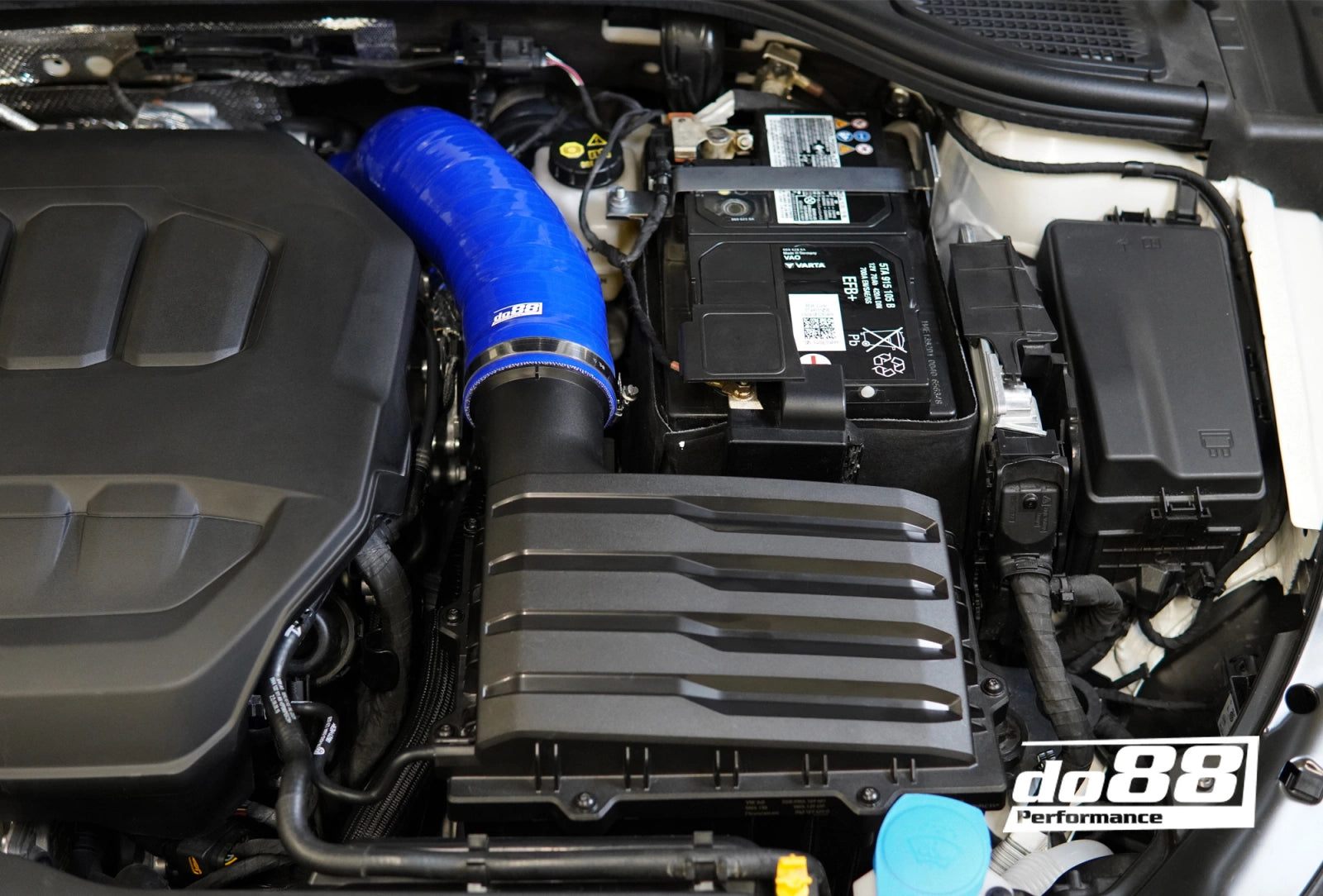

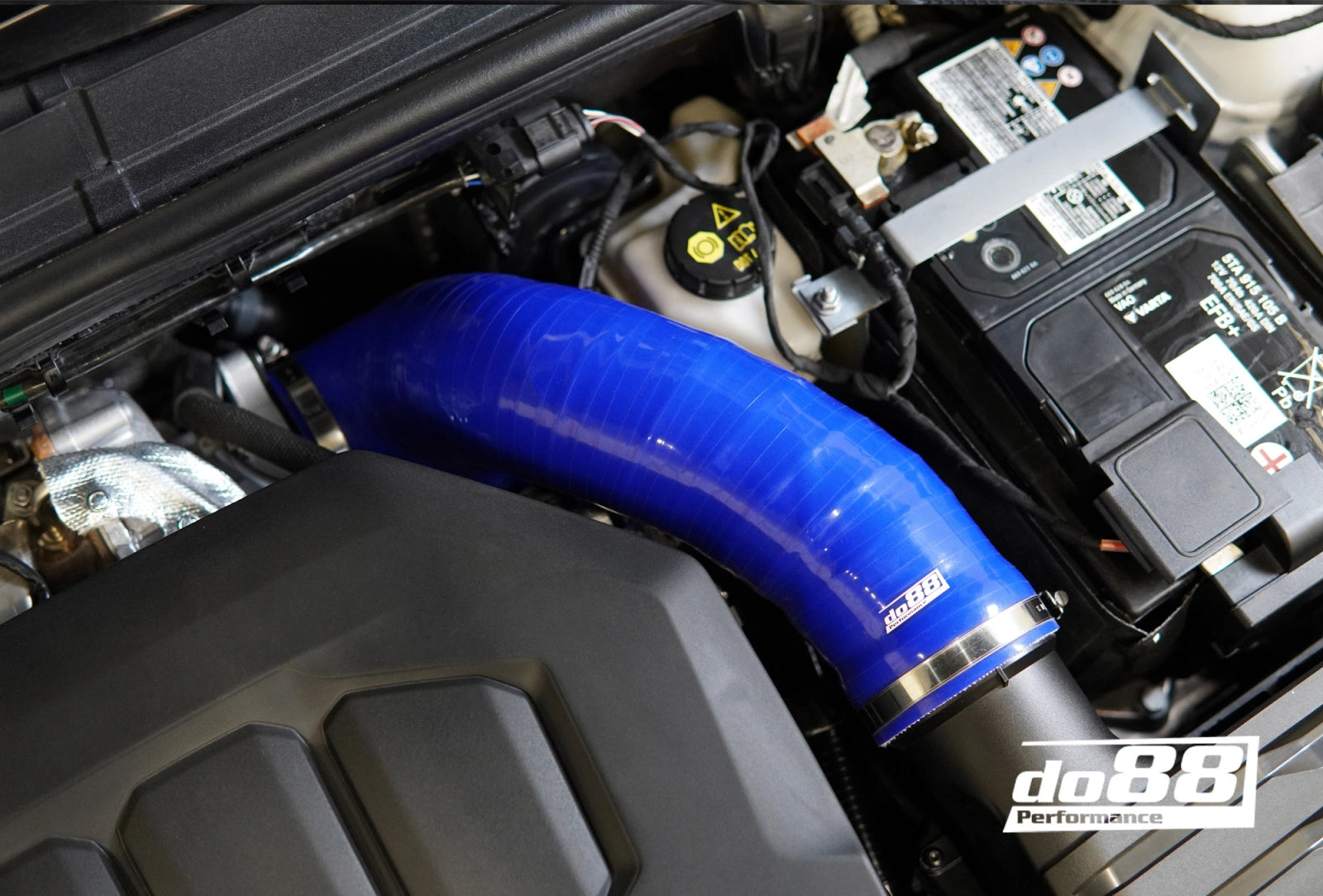

The do88 Silicone hose for various VAG 2.0 TSI EA888 Gen4 models have been developed as a direct replacement for the original turbo inlet hose. The hose is manufactured from high-quality silicone and features an advanced 3D freeform design for optimal air guidance.
This silicone hose for among others the VW Golf 8 GTIFormentor, developed for the Golf 8 R, Audi S3 8Y, and Cupra, was developed using 3D scanning, SolidWorks CAD design, Computational Fluid Dynamics (CFD), and flowbench tests to achieve an optimal balance between airflow and pressure loss.
Properties
- 26% higher airflow than OEM
- 3D freeform designed silicone hose
- CNC-milled turbo inlet adapter
- Developed with 3D scanning of the assembly environment
- Designed in SolidWorks
- Validated with Computational Fluid Dynamics (CFD)
- Tested on a Superflow SF1020 flowbench
- Optimized air filtration system with adjusted radii and angles for improved airflow
- Direct replacement of the original part
- Supplied with high-quality hose clamps
Technical specifications

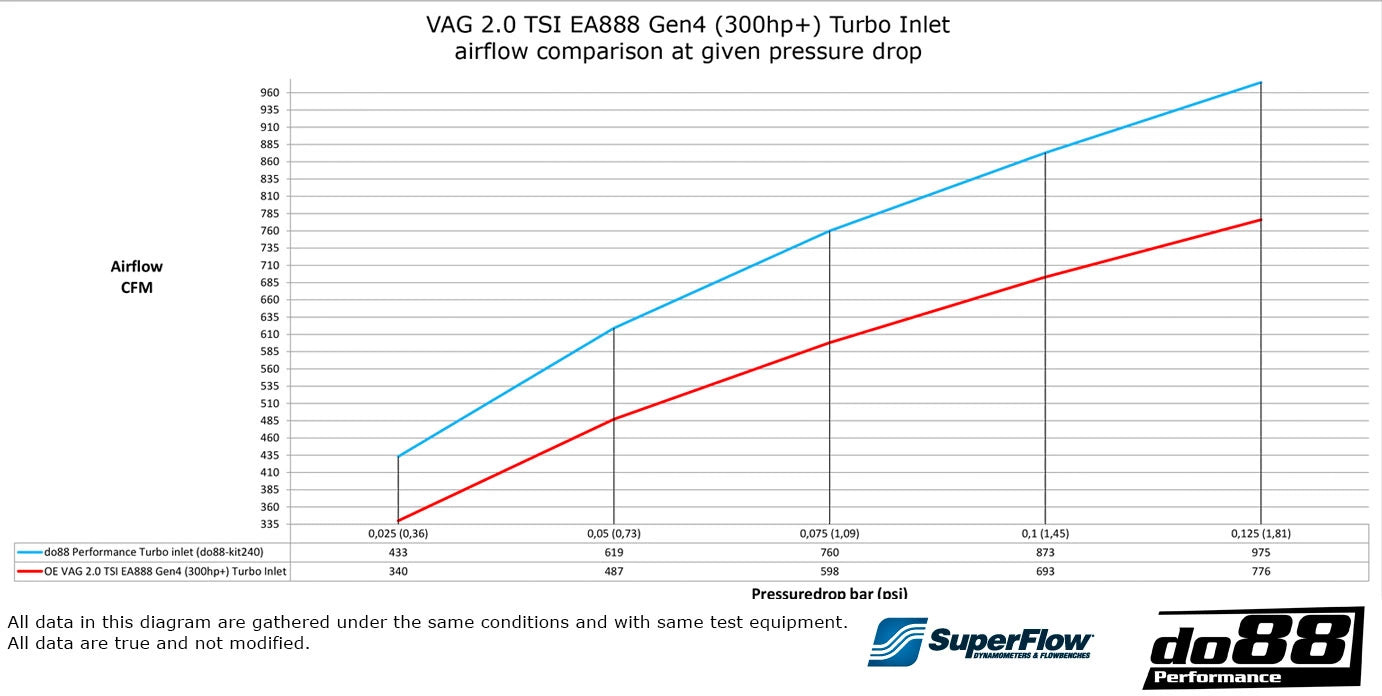

- Airflow at 0.1 bar / 1.45 psi pressure loss: 873 CFM
- OEM airflow at 0.1 bar / 1.45 psi pressure drop: 693 CFM
- Airflow improvement: 26%
- Hose material: silicone
- Turbo inlet adapter: CNC-machined

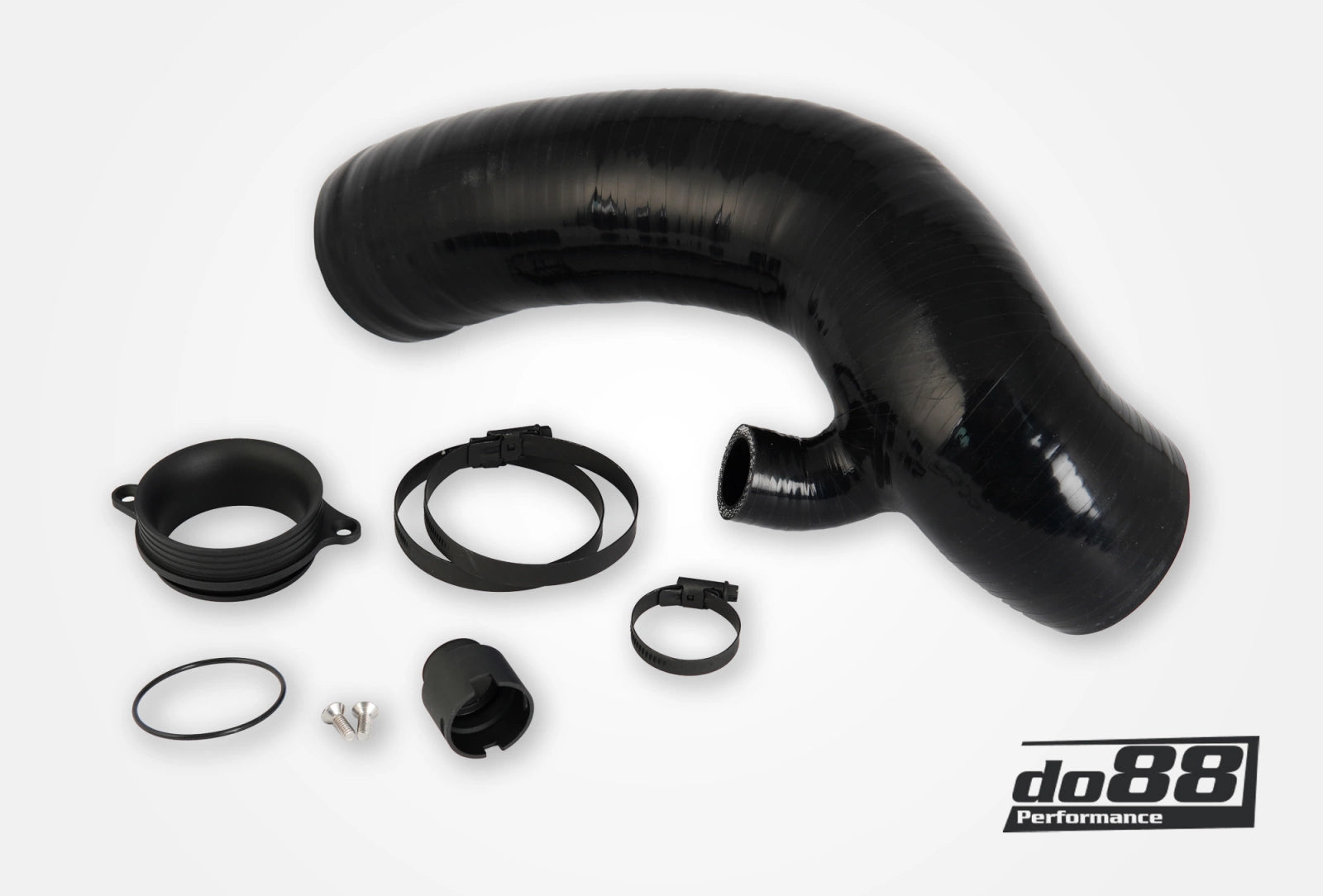

Contents of the set
- do88 Silicone hose
- CNC-milled turbo inlet adapter
- Hose clamps
Frequently Asked Questions
What material is the hose made of?
The hose is manufactured from high-quality silicone material.
Is a turbo inlet adapter included?
Yes, a CNC-machined turbo inlet adapter is included.
Are hose clamps included?
Yes, the set comes with high-quality hose clamps.
