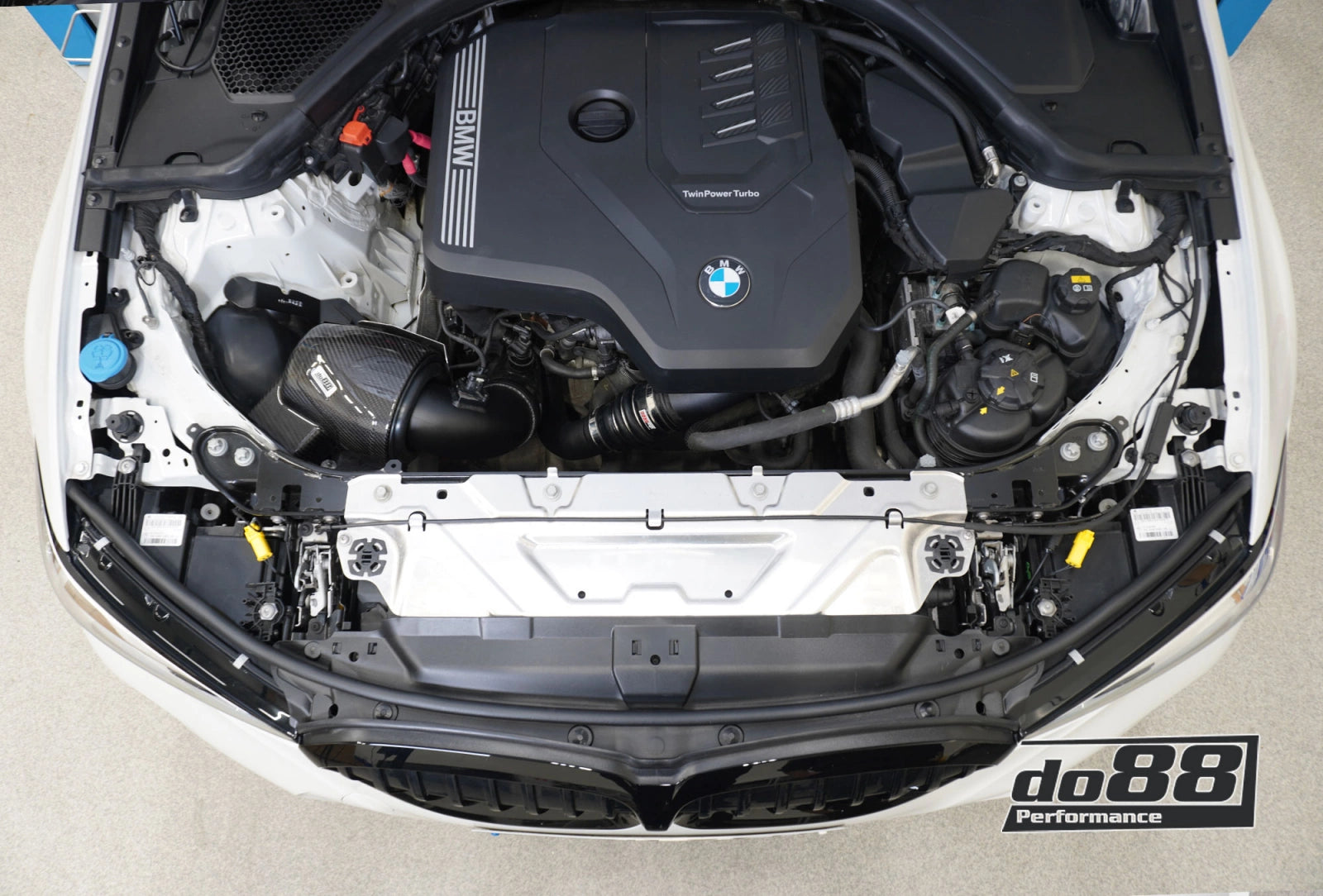

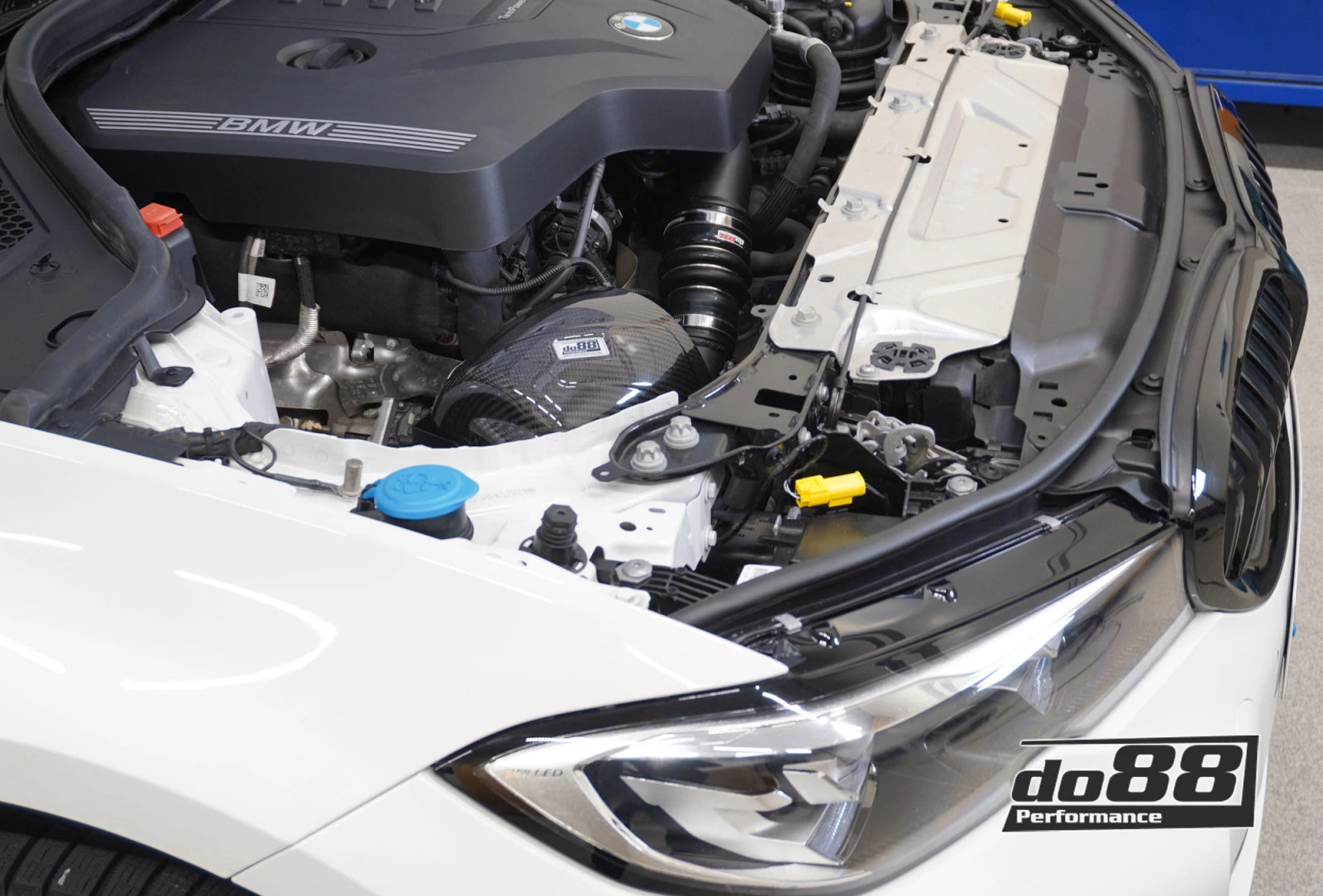

The do88 Intake for the BMW 320i, 330e and 330i G20 G21 has been developed for high-power applications. The system is designed with a focus on filtration, airflow, and controlling intake air temperatures. The intake is suitable for vehicles with the B48 / B46 engine and uses a fully enclosed design to supply only cold air.
This intake features a large enclosed airbox with integrated heat shield, a 102 mm (4") mandrel bent aluminium tube, a custom-made silicone hose and a large custom-developed cotton air filter. During development, a secondary air intake was integrated to reduce the restriction of the original air intake. The system is designed to maintain sufficient clearance for strut braces.
Properties
- Fully enclosed air intake system
- Developed for low intake air temperatures (IAT)

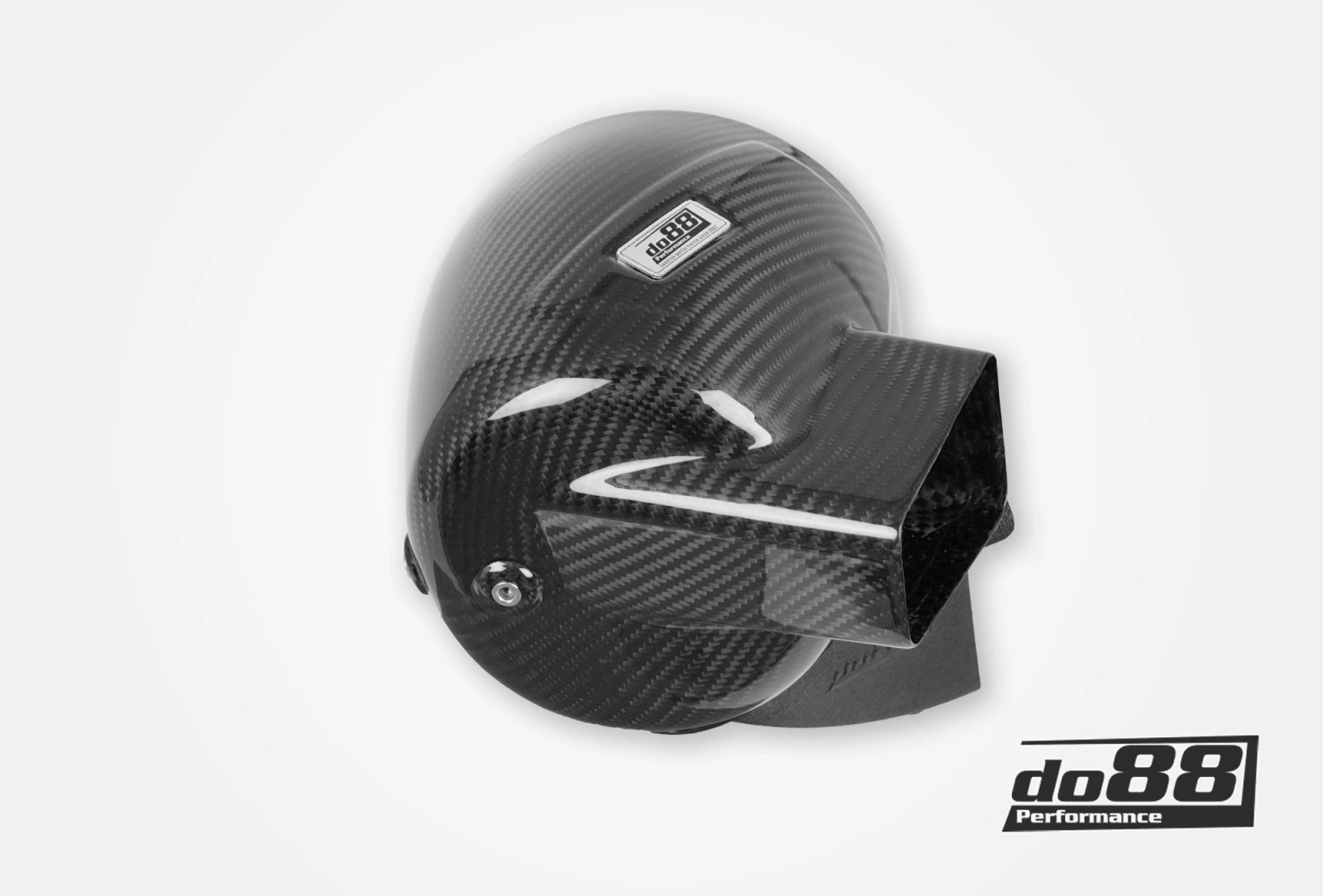

- Enclosed airbox with integrated heat shield
- Secondary air supply for improved air supply
- Large 7" airbox
- 102 mm (4") mandrel curved aluminium intake tube
- Custom-made silicone hose

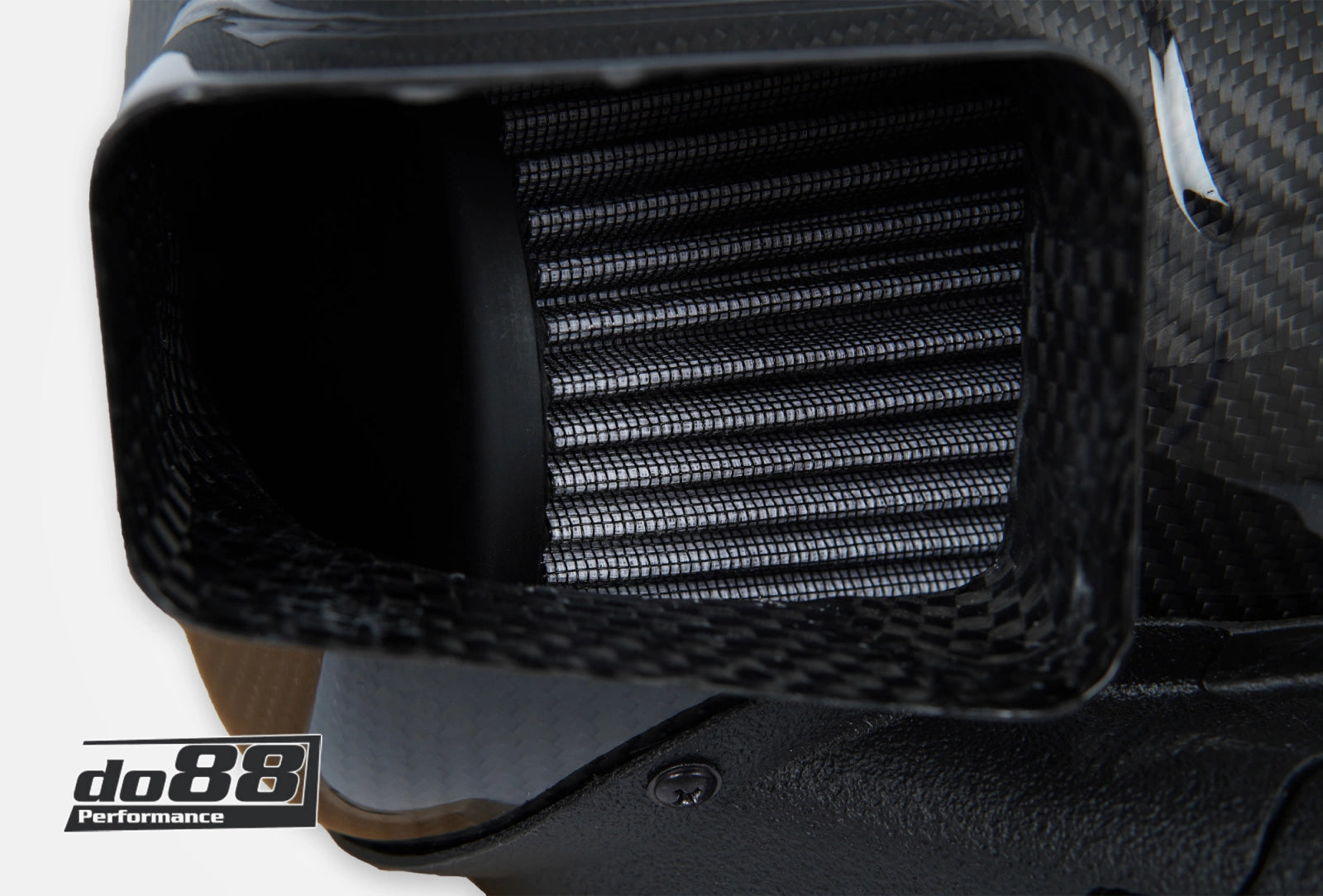

- 105 mm (4.1") custom-developed cotton air filter
- Tightly woven cotton mesh for filtration
- Washable and reusable air filter
- Designed without sound-dampening elements from the original system
- More audible turbo spool and intake noise
- Developed for unobstructed airflow
- Suitable for tuned engines
- Suitable for hybrid turbos
- Suitable for big turbo kits
- Compatible with future modifications such as turbo upgrades
- UV-resistant high-gloss clear lacquer
- Heat-resistant high-gloss clear lacquer
- No sharp bends or airflow restrictions in the design
Technical specifications
- Product type: Intake
- Engines: B48 / B46
- Airbox size: 7"
- Air filter diameter: 105 mm (4.1")
- Air filter type: Cotton air filter with tightly woven cotton mesh
- Intake tube diameter: 102 mm (4")
- Intake tube material: Aluminium
- Intake tube construction: Mandrel bent

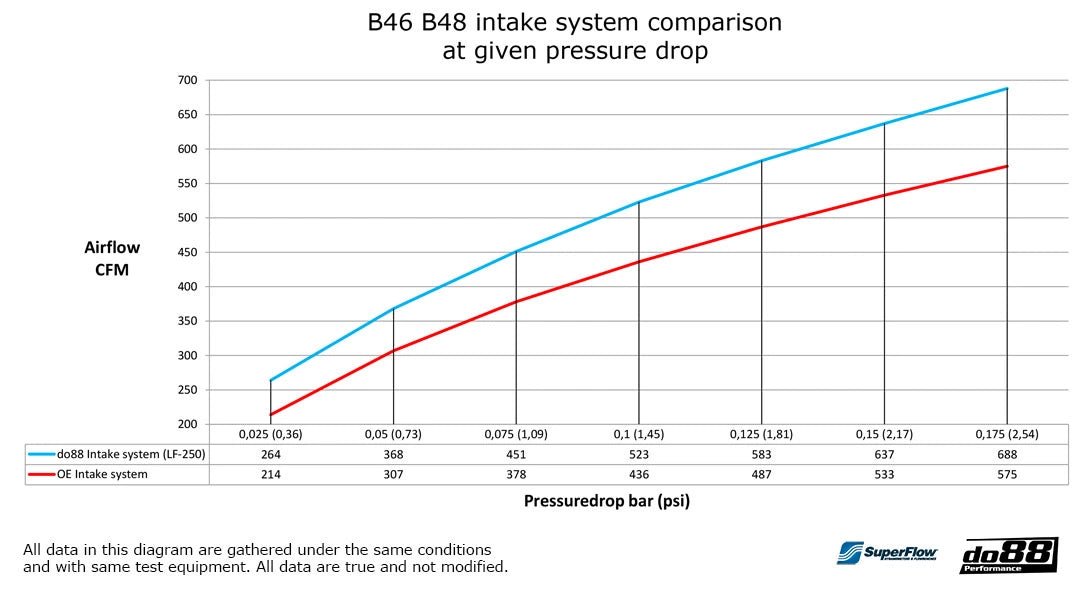

- Airflow increase: Up to 23%
- Filter type: Washable and reusable
- Recommended cleaning interval: Every 10,000 km
- Recommended filter oil: BMC Filter Oil WAFLU250
- Recommended cleaning agent: BMC Washing Fluid WADET500
- OE reference replacement: 13718580424
- OE reference replacement: 13718580428
- OE reference replacement: 13718656981
Contents of the set
- do88 Intake
- Sealed airbox
- Integrated heat shield
- 102mm (4") aluminum intake tube
- Silicone hose
- 105 mm (4.1") cotton air filter
Frequently Asked Questions
Is the air filter washable?
Yes, the included cotton air filter is washable and reusable for a long lifespan.
How often should the air filter be cleaned?
do88 recommends cleaning the air filter every 10,000 kilometers with a cleaner for cotton air filters.
Why does the system have a secondary air supply?
During development, it was determined that an additional air supply was necessary to reduce the limitation of the original air supply.
For which applications was this intake developed?
The intake has been developed for standard vehicles, tuned engines, hybrid turbos, and big turbo kits.
