The do88 Charge Cooler Manifold has been developed for various BMW G-Series models with B58 Gen 2 engine and the Toyota GR Supra A90This aluminium intake manifold combines an integrated air-to-water charge cooler with a high-quality Bar&Plate core by 102 mm thickness for a compact and precisely designed solution.
The charge cooler utilizes cast end tanks developed using 3D scanning, CFD analysis, and 3D printing. The system is designed as a direct replacement for the original part and maintains compatibility with the standard hood cover. Additionally, a thermal spacer is included to limit heat transfer from the cylinder head to the intake manifold.
Properties
- High-quality Bar&Plate air-water charge cooler core
- 102 mm (4 inch) thick charge cooler core
- 11 water cooling channels compared to 6 on the original part
- Cast end tanks for optimal distribution of air and coolant
- Developed with SolidWorks and Computational Fluid Dynamics (CFD)
- Prepared for optional additional port injection
- Fuel rail with female AN-8 connections sold separately
- Compatible with Injector Dynamics ID1050x-34-14 injectors
- Compatible with Bosch EV14 Compact (K) injectors
- Injector shut-off plugs included when port injection is not used
- 1/8” NPT connections per cylinder for nitrous or methanol injection
- Sealing plugs for all injection connections included
- Integrated sensor platform with three 1/8” NPT connectors
- Additional vacuum or measuring connections integrated into the manifold
- Two 1/8” BSPT connections for water temperature measurement or venting
- Sealing plugs for water connections included

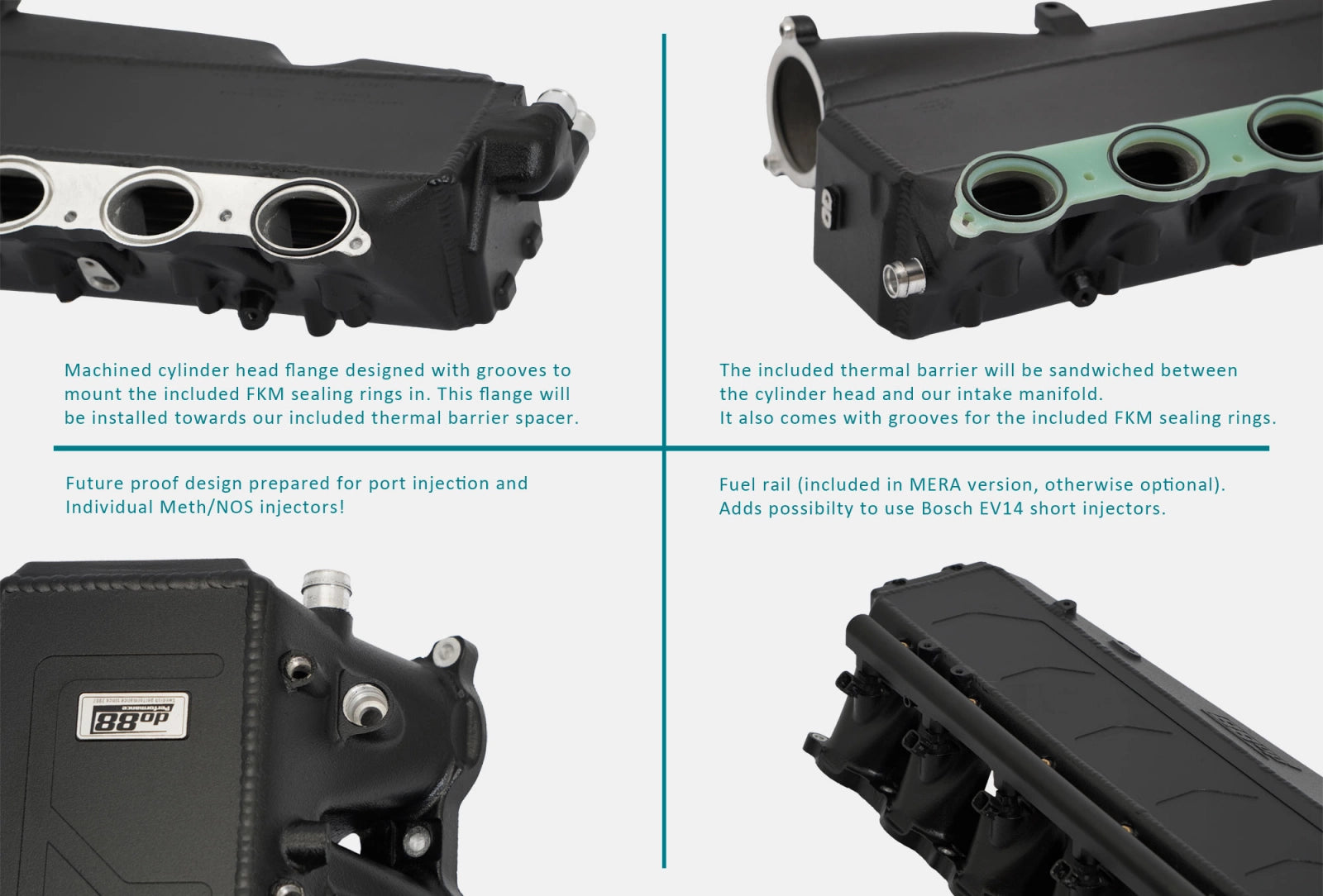

- Thermal spacer reduces heat transfer from the cylinder head
- Specially developed FKM silicone O-rings for optimal sealing
- Easy access to the screw filter for oil changes

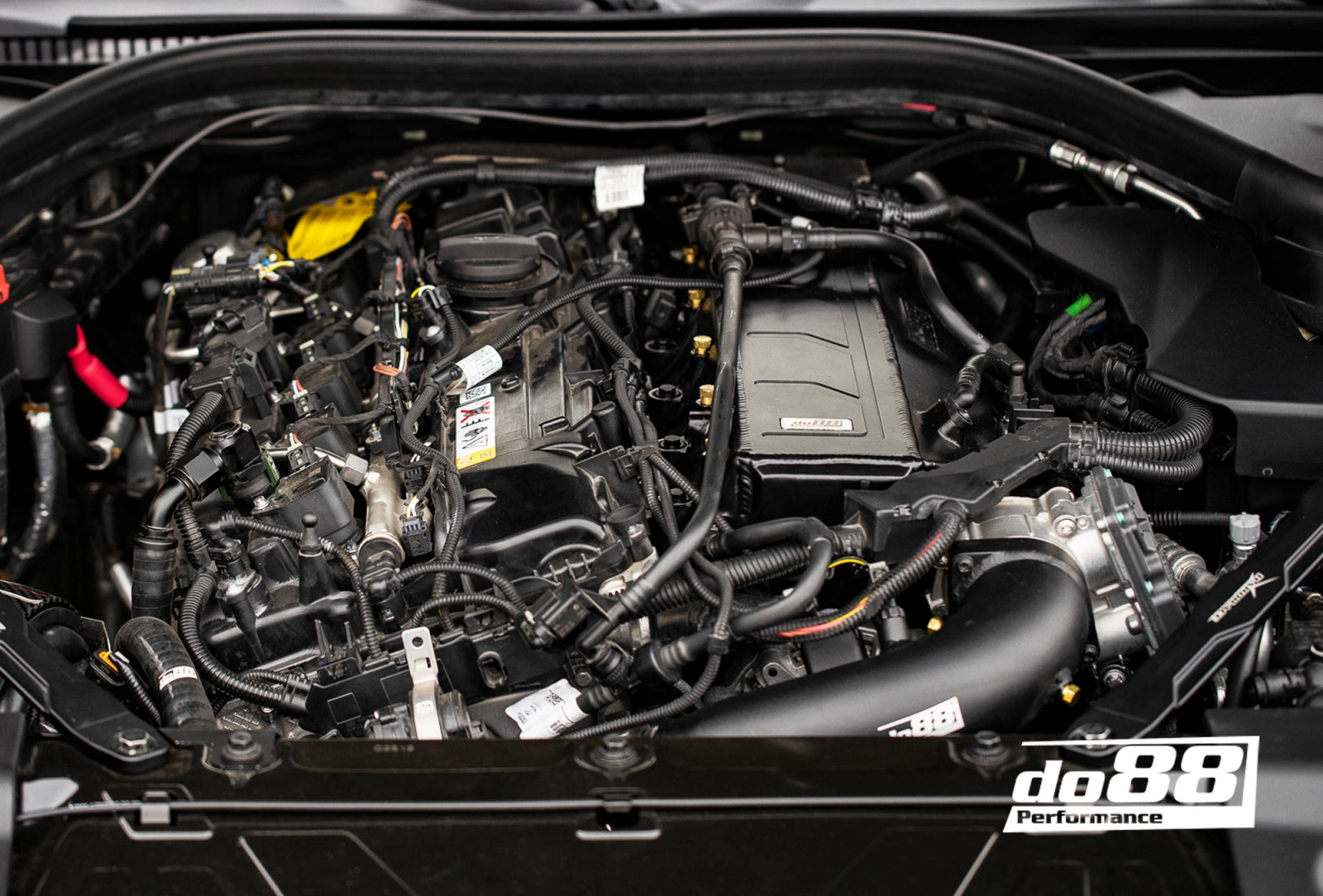

- Direct fitting design without modifications for mounting
- Includes mounting brackets for wiring harnesses and hood cover
- Suitable for original and aftermarket hood covers with OE connections
- Also fits in combination with the optional fuel rail with a minor modification
- Aluminum construction suitable for higher turbo pressure levels than the original plastic manifold
Technical specifications
- Product Type: Charge Cooler Manifold
- Material: Aluminum
- Charge cooler type: Bar & Plate air-to-water core
- Core thickness: 102 mm (4 inch)
- Number of water cooling channels: 11

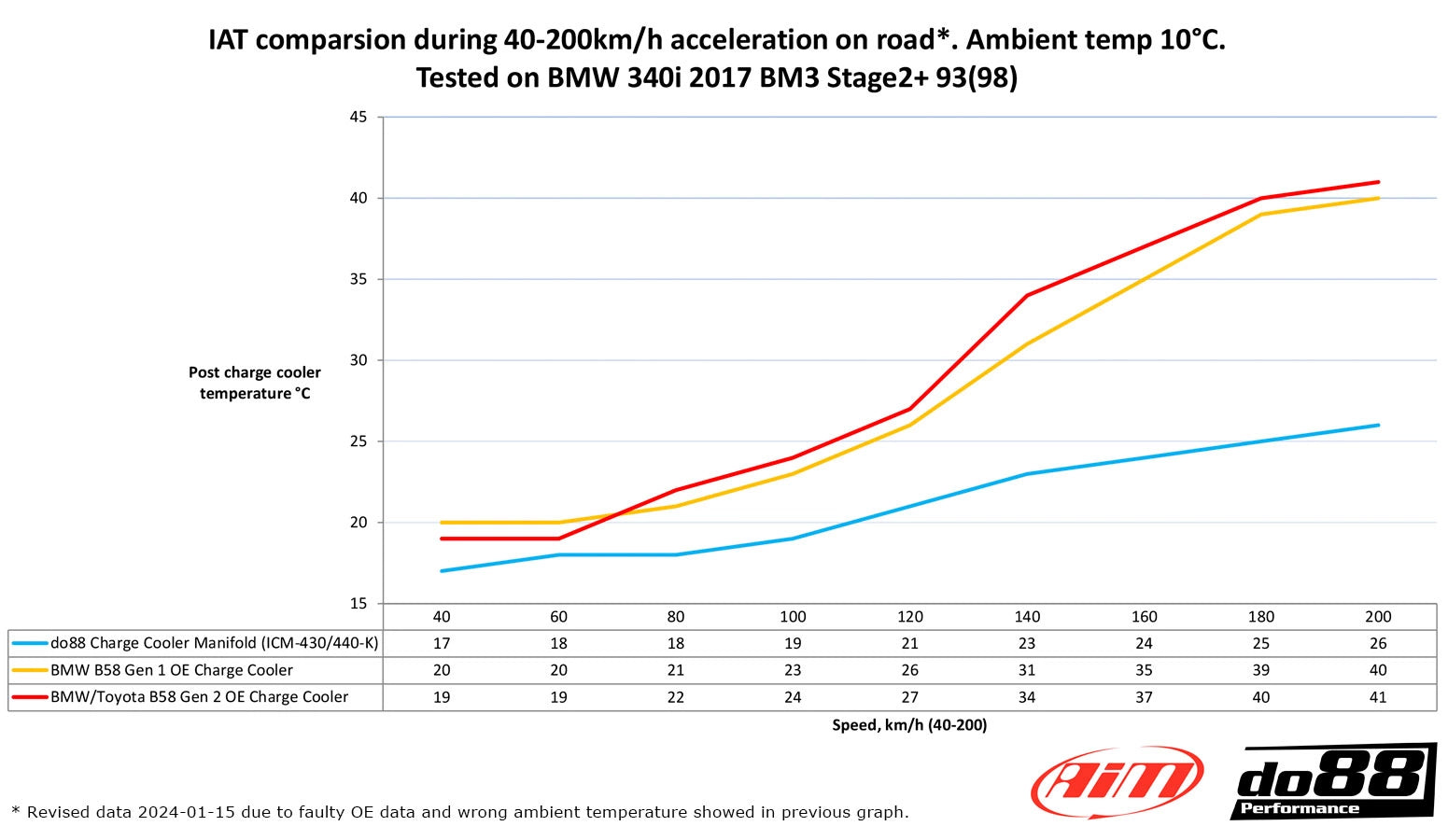

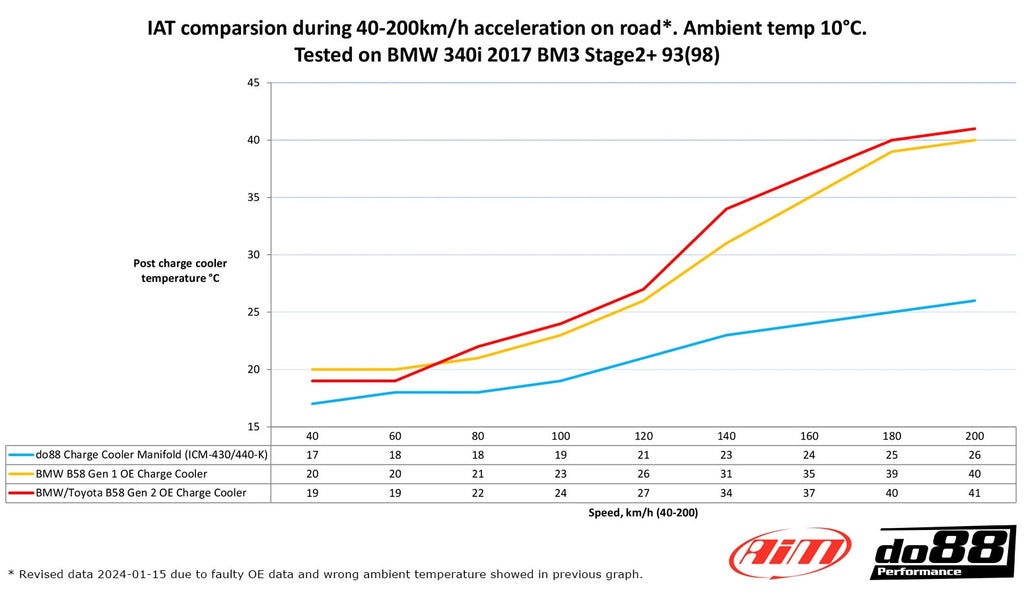

- Air temperature under identical conditions: 26°C compared to OEM 41°C

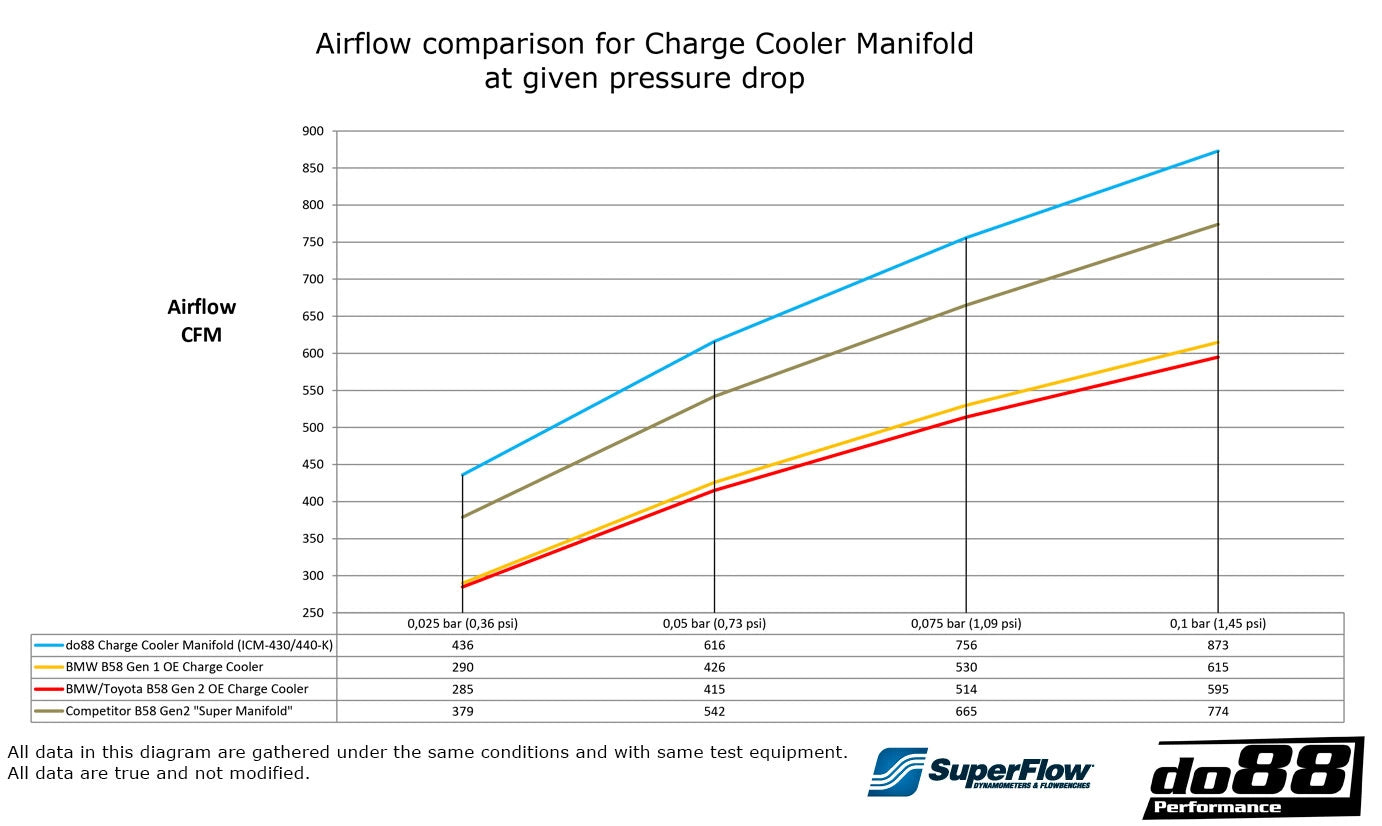

- Airflow at 0.1 bar / 1.45 psi pressure loss: 873 CFM compared to OEM 595 CFM
- 47% higher airflow compared to OEM
- Peak power gain measured: 5 hp
- Highest power gain mid-range: 18 hp
- Highest torque gain: 28 Nm
- Three integrated 1/8” NPT test ports
- 1/8” NPT connection per cylinder channel
- Two 1/8” BSPT venting/temperature ports
- OE reference: 11618647977
Contents of the set
- do88 Charge Cooler Manifold
- Thermal spacer
- Injector shut-off plugs
- Termination plugs for 1/8” NPT connections
- Termination plugs for 1/8” BSPT connections
- FKM silicone O-rings for thermal spacer and intake manifold (12 pieces total)
- Mounting brackets for various components, wiring harnesses, and hood cover
- Mounting hardware
Frequently Asked Questions
Does this Charge Cooler Manifold fit under the original hood cover?
Yes, the system is designed for use with the original hood cover and is also compatible with aftermarket covers with OE connections.
Can additional port injection be applied?
Yes, the manifold is prepared for additional port injection with an optional fuel rail and compatible injectors.
Are sealing plugs included when port injection is not used?
Yes, injector shut-off plugs are included.
Are extra metering and vacuum connections available?
Yes, the manifold features three integrated 1/8” NPT measurement ports and two 1/8” BSPT connections for temperature measurement or venting.
Is the system suitable for vehicles with Mild Hybrid drive?
Yes, but for vehicles with a Mild Hybrid engine, the alternator must be modified according to step 11 of the installation manual.
