The do88 BigPack Intercooler for the BMW M2 Competition, M3 and M4 F8X is a complete upgrade package for the charge air cooling system with simple drop-in installation. Depending on the chosen configuration, the package consists of a performance intercooler, intercooler pipes, and radiators for the intercooler system.
The components were developed using advanced 3D scanning, 3D modeling, CFD simulations, and extensive field testing. The performance intercooler features a Bar & Plate core with 3D freeform designed end tanks that are TIG-welded. The radiators feature multichannel tubes, and the intercooler tubes are designed to improve both durability and airflow.
Properties
- Complete charge air cooling package with drop-in mounting.
- Choice of three different configurations.
- Performance intercooler with Bar & Plate core.
- 3D freeform designed end tanks TIG welded to the core.
- Intercooler core with an 85% larger core volume than the original.

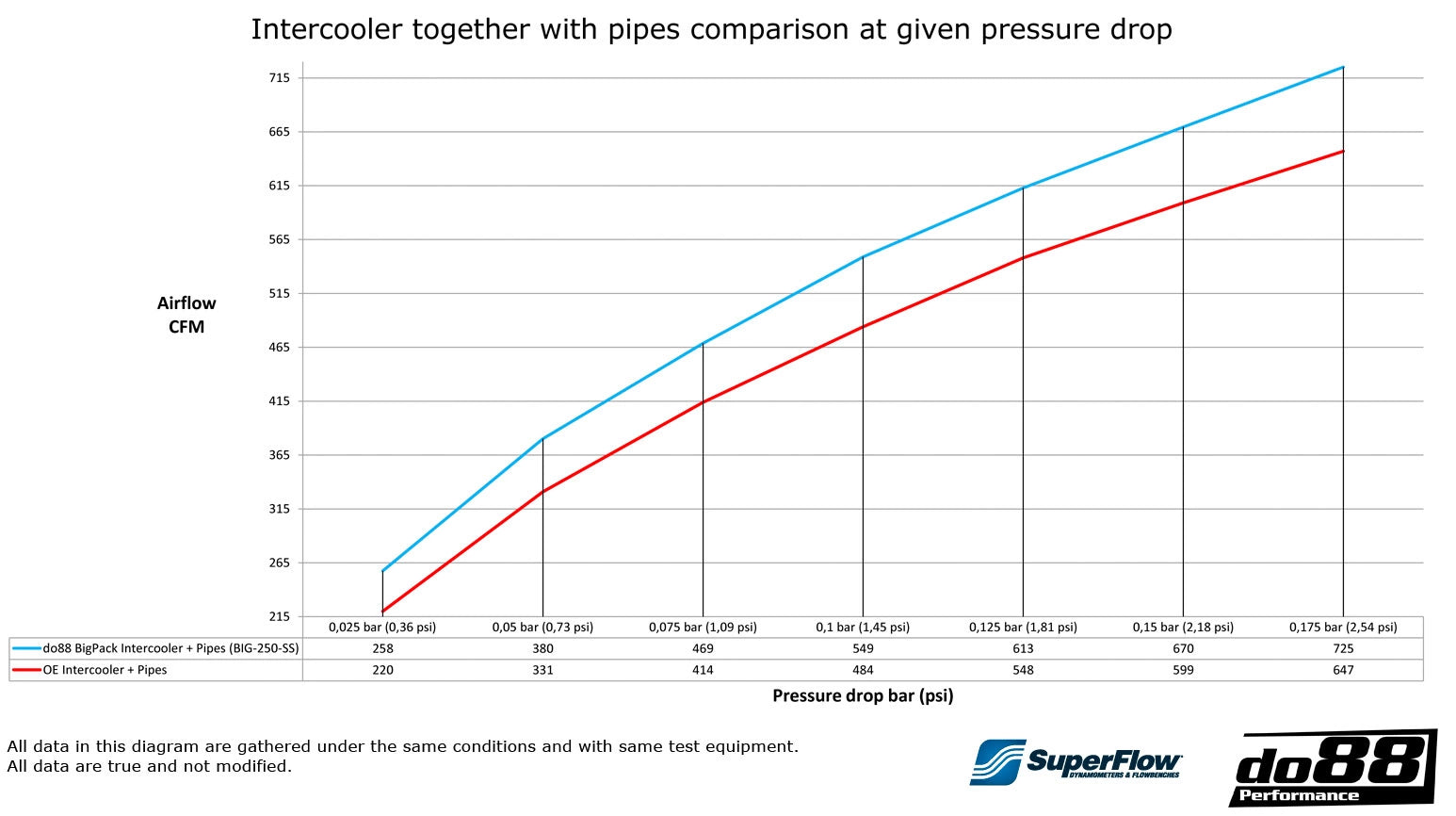

- 16% better airflow compared to the original.
- 9°C lower intake air temperature compared to the original.
- Radiators lower the coolant temperature of the charge air cooling system.
- Increased cooling surface area and greater core thickness of the radiators.
- Radiators constructed with multichannel tubes.
- Intercooler tubes improve durability and airflow.
- Developed with 3D scanning, 3D modeling, and CFD simulations.
- Extensively tested for optimal performance.
Technical specifications
- Intercooler core volume: 85% larger than original.
- Airflow improvement: 16-17% higher depending on configuration.
- Intake air temperature reduction: 9-14°C depending on configuration.

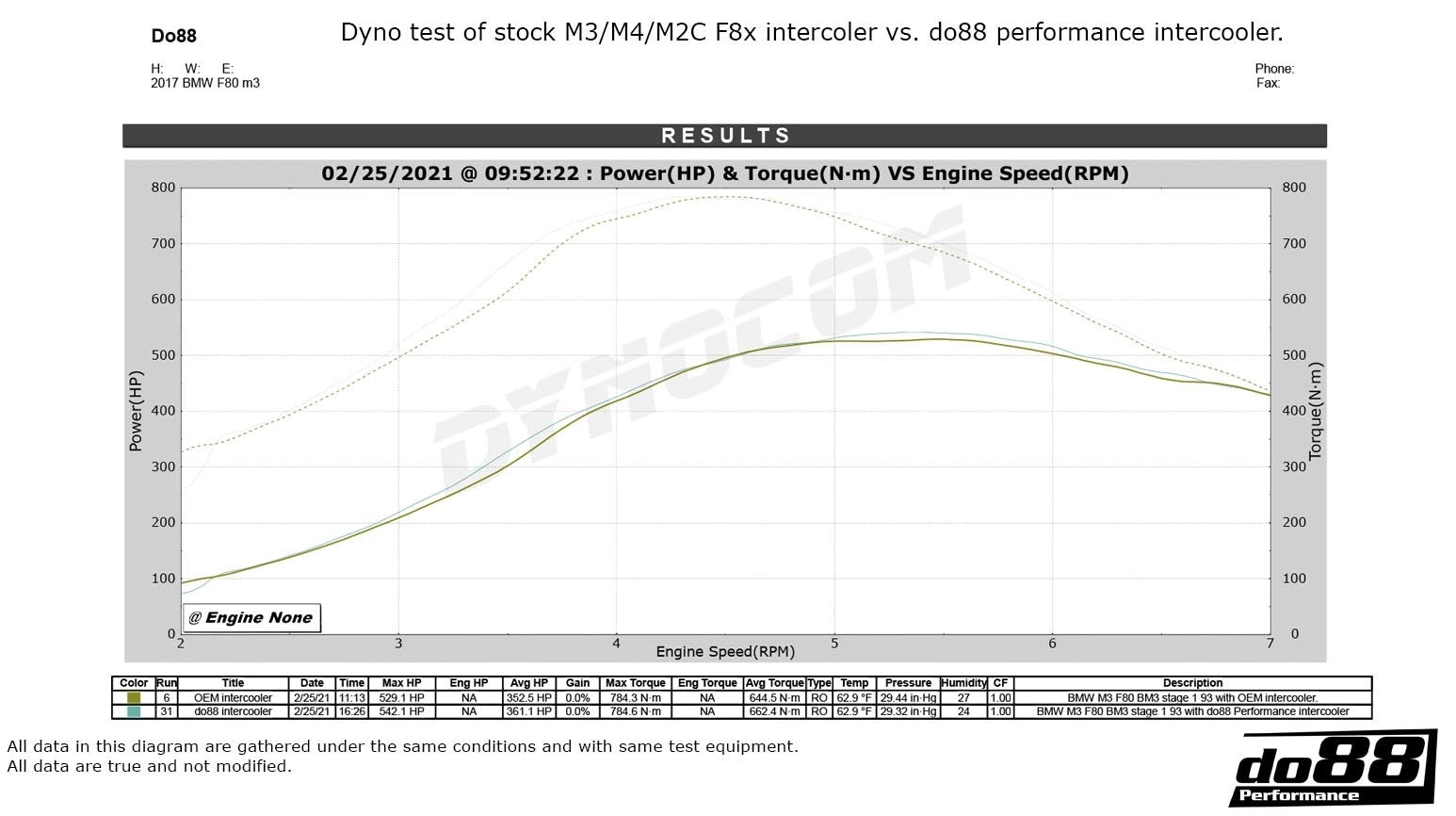

- Peak power gain: 13 hp measured on vehicle with BootMod3 Stage 1 tune.
- Maximum power gain in the mid-range: 25 hp.
- Maximum torque gain: 52 Nm.
- Intercooler Construction: Bar & Plate.
- End tanks: 3D freeform designed and TIG welded.

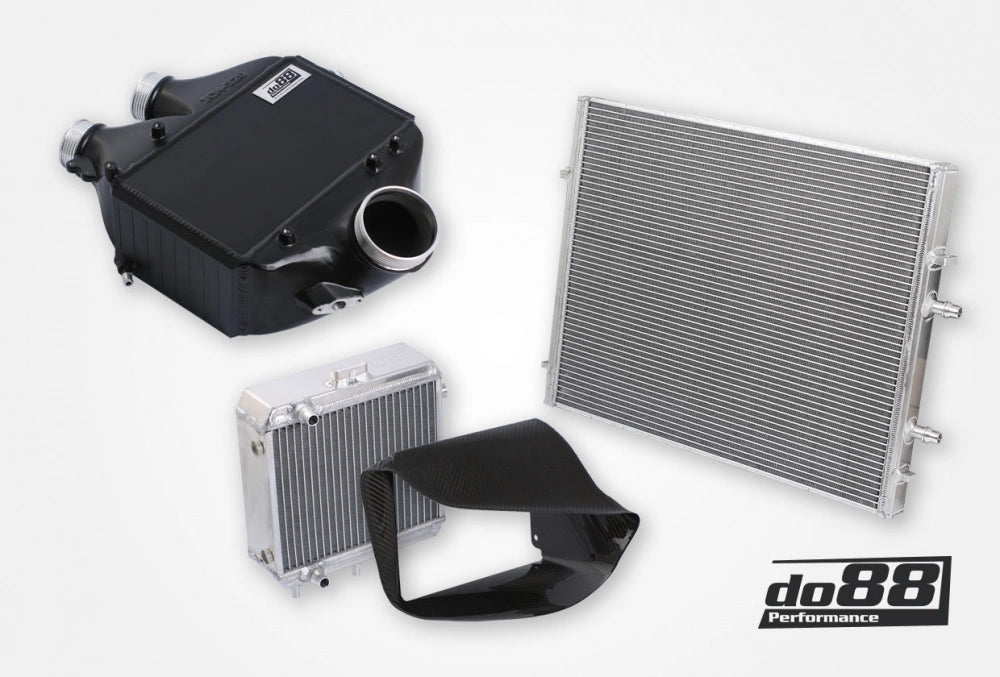

Contents of the set
- do88 BigPack Intercooler
- Choice of three configurations:
- Intercooler and both intercooler tube sets.
- Intercooler and both radiators for the intercooler system.
- Intercooler, both intercooler tubes and both radiators for the intercooler system.
Frequently Asked Questions
Which configurations are available?
There are three configurations available: intercooler with intercooler tubes, intercooler with radiators, or a complete set with intercooler, intercooler tubes, and radiators.
What does the performance intercooler do?
The intercooler lowers the intake air temperature and reduces pressure drop, resulting in 16% better airflow and a 9°C lower intake air temperature compared to the original part.
What is the function of the radiators?
The radiators lower the coolant temperature of the charge air cooling system through a larger cooling surface, greater core thickness, and multichannel tubes.
Does every configuration fit the BMW M2 Competition F87?
No. The BigPack configurations with radiators do not fit the BMW M2 Competition F87.
