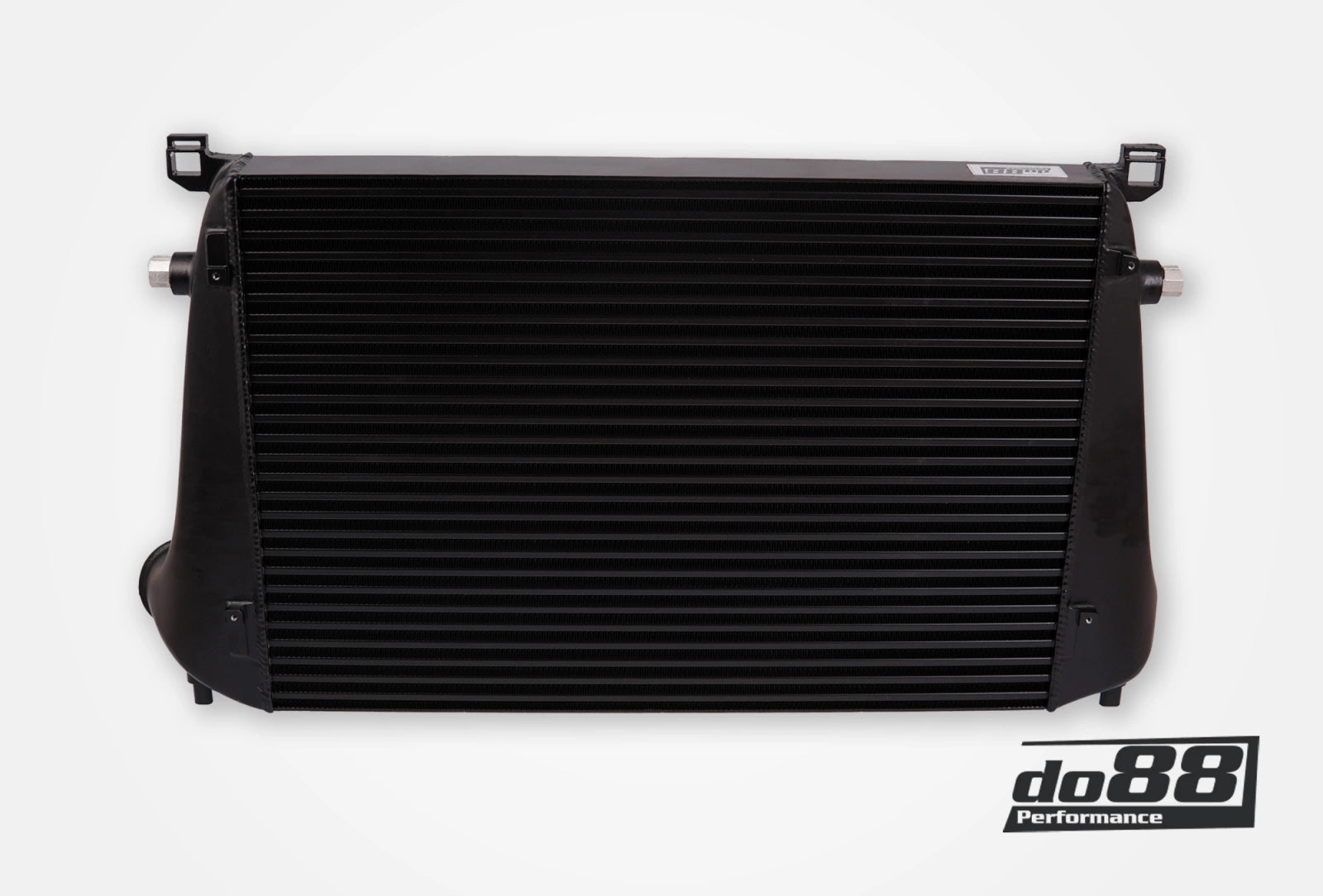

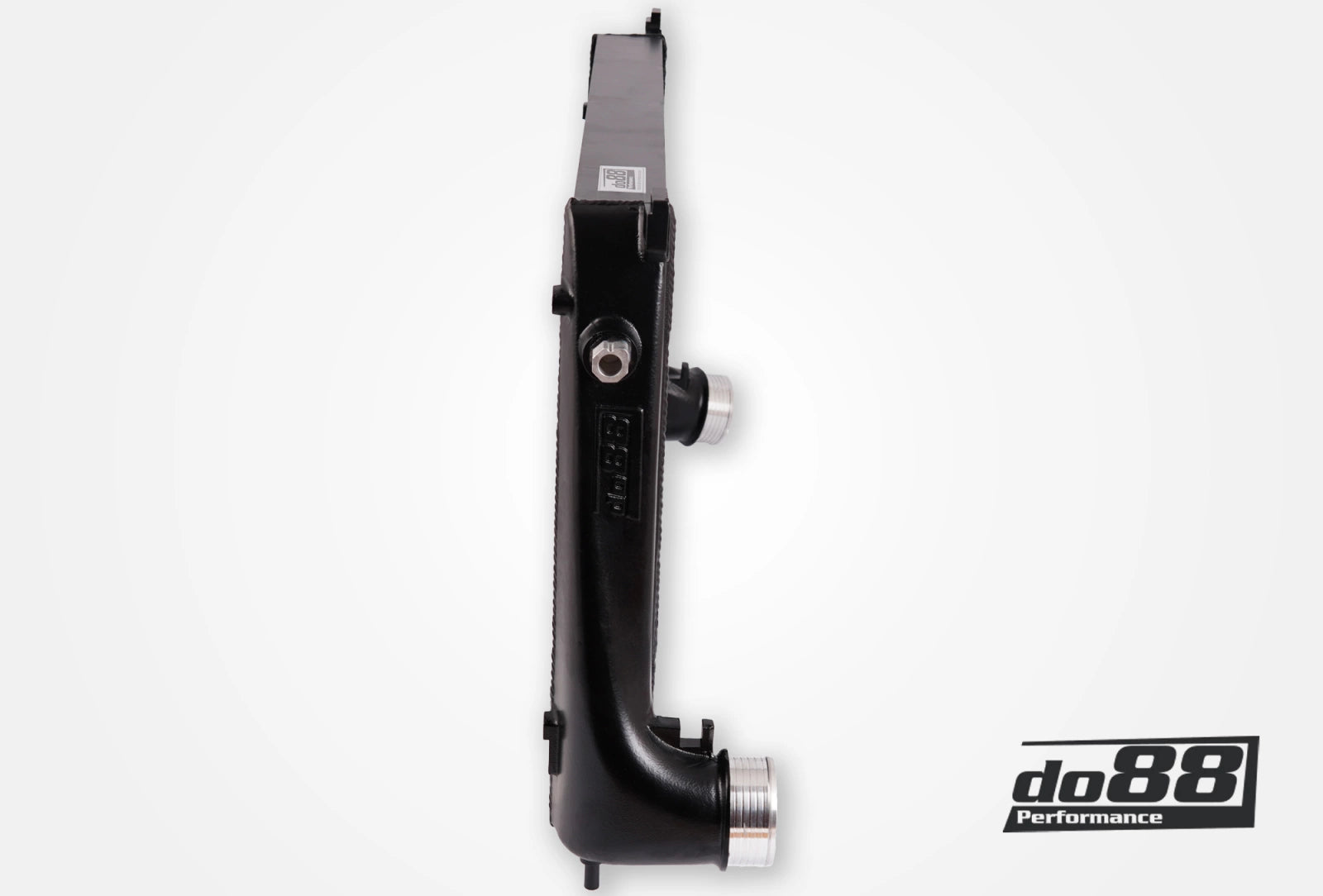

The do88 Intercooler for various VAG 2.0 TSI EA888 Gen4 models has been developed as a direct replacement for the original intercooler. This fully made aluminum The manufactured intercooler is designed for easy installation and maximum utilization of the available space.
Thanks to a significantly larger core volume and an optimized construction, this offers intercooler improved cooling performance and higher airflow for vehicles such as the VW Golf 8 GTI, Golf 8 R, Audi S3 8Y and other EA888 Gen4 applications.
Properties
- 75% larger core volume than OEM
- 7% larger active cooling surface than OEM
- 31% higher airflow at 0.15 bar / 2.18 psi pressure loss
- Peak power gain of 12 hp measured on a 2021 VW Golf GTI Clubsport Edition 45 with standard software
- Peak torque gain of 14 Nm measured on a 2021 VW Golf GTI Clubsport Edition 45 with standard software
- 12°C lower air temperature after the intercooler under identical conditions
- All-aluminum construction
- Continuous welds for reliability and durability

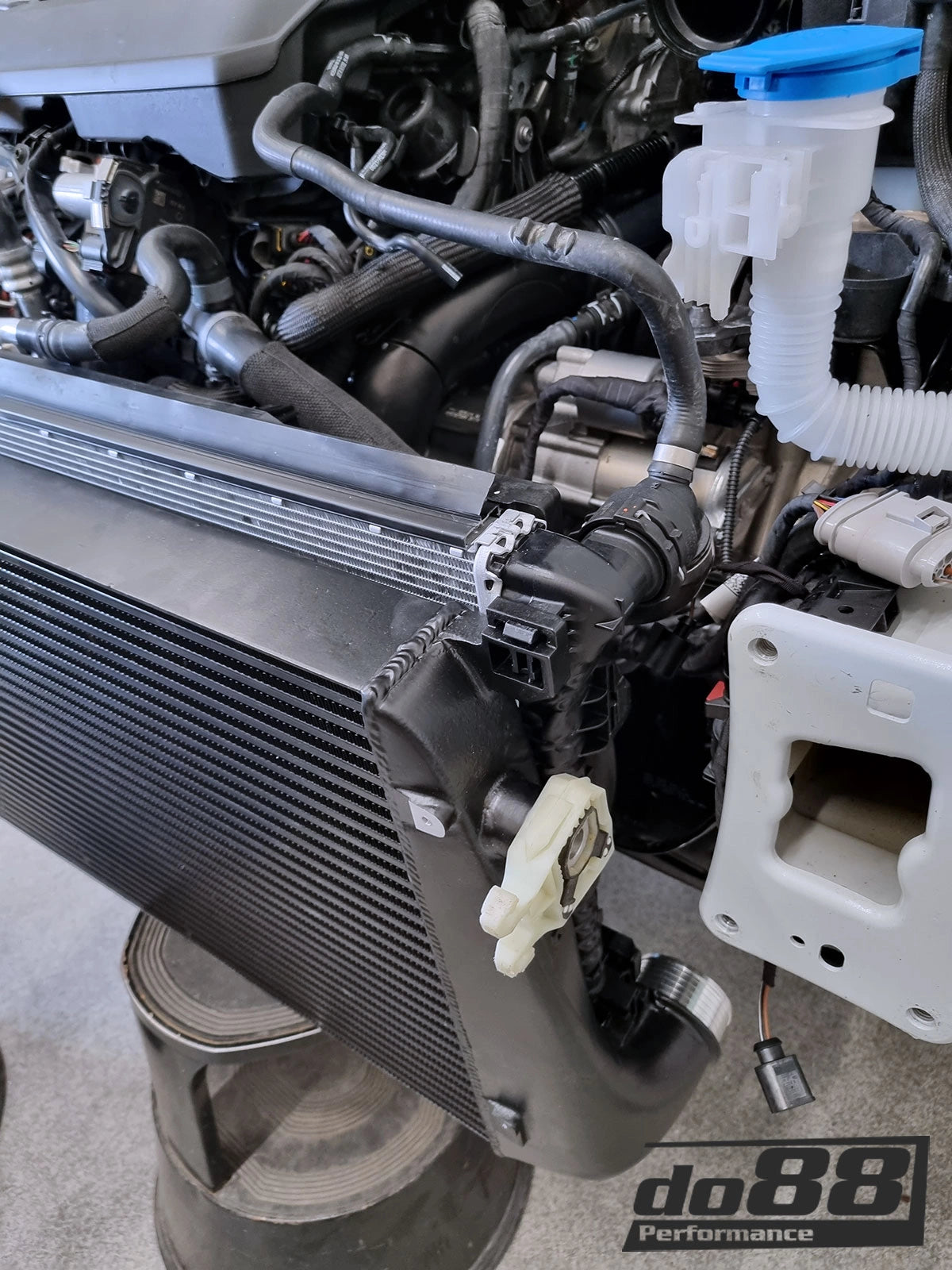

- Optimized for easy drop-in installation
- Extensively tested during development
- Includes all necessary mounting materials and instructions
Technical specifications
- Core volume: 15,811 cm³
- OEM core volume: 9,056 cm³
- Active cooling surface: 2,774 cm²
- OEM active cooling surface: 2,587 cm²
- Airflow at 0.15 bar / 2.18 psi pressure loss: 462 CFM
- OEM airflow at 0.15 bar / 2.18 psi pressure drop: 353 CFM
- Air temperature after intercooler: 23°C
- OEM air temperature after intercooler: 35°C
- Material: aluminium

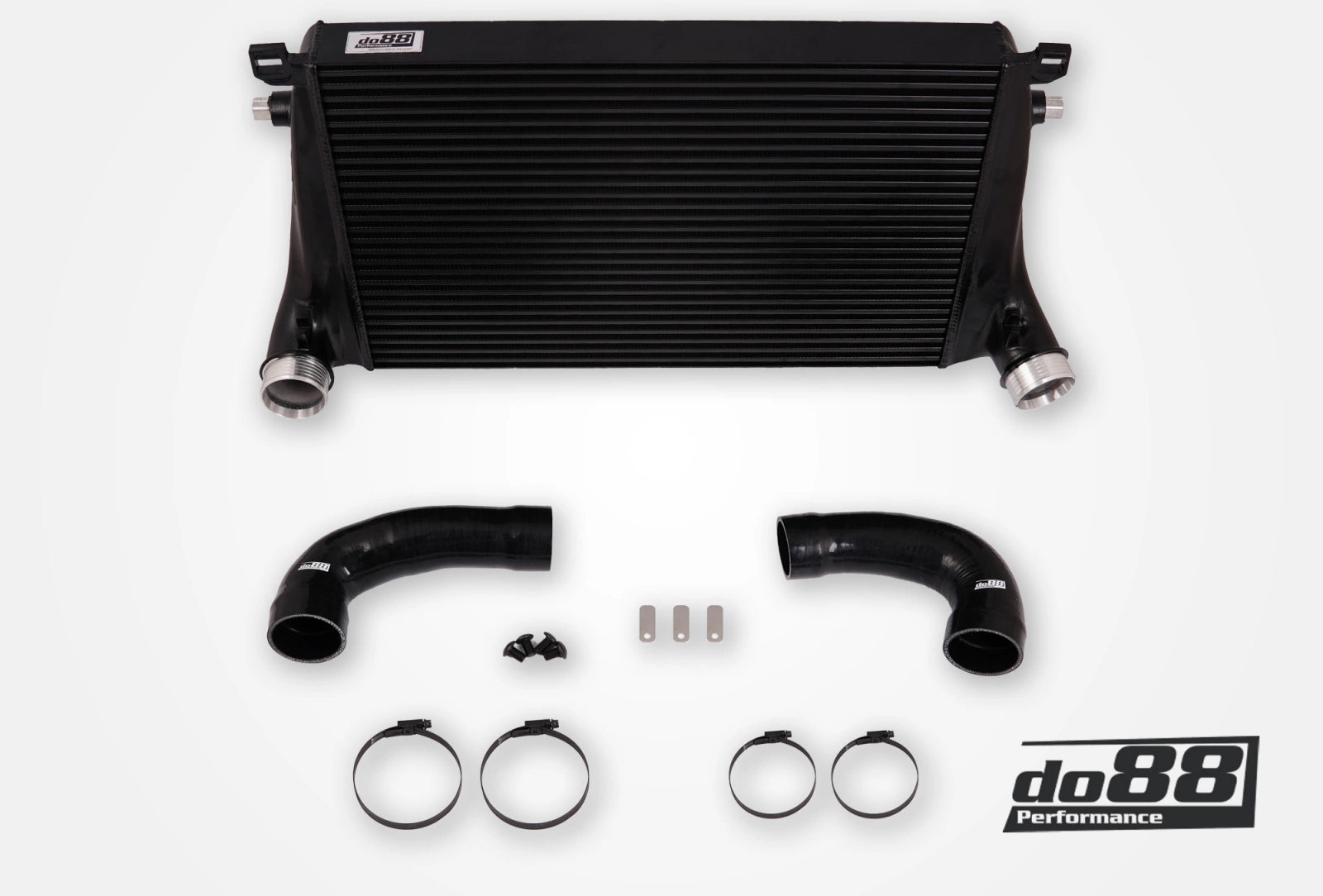

Contents of the set
- do88 Intercooler
- Bolts
- Rings
- Assembly instructions
Frequently Asked Questions
Is mounting hardware included?
Yes, bolts, washers, and mounting instructions are included.
Is this intercooler a direct replacement?
Yes, this intercooler has been developed for easy drop-in installation.
What material is the intercooler made of?
The intercooler is manufactured entirely from aluminum with continuous welds.
